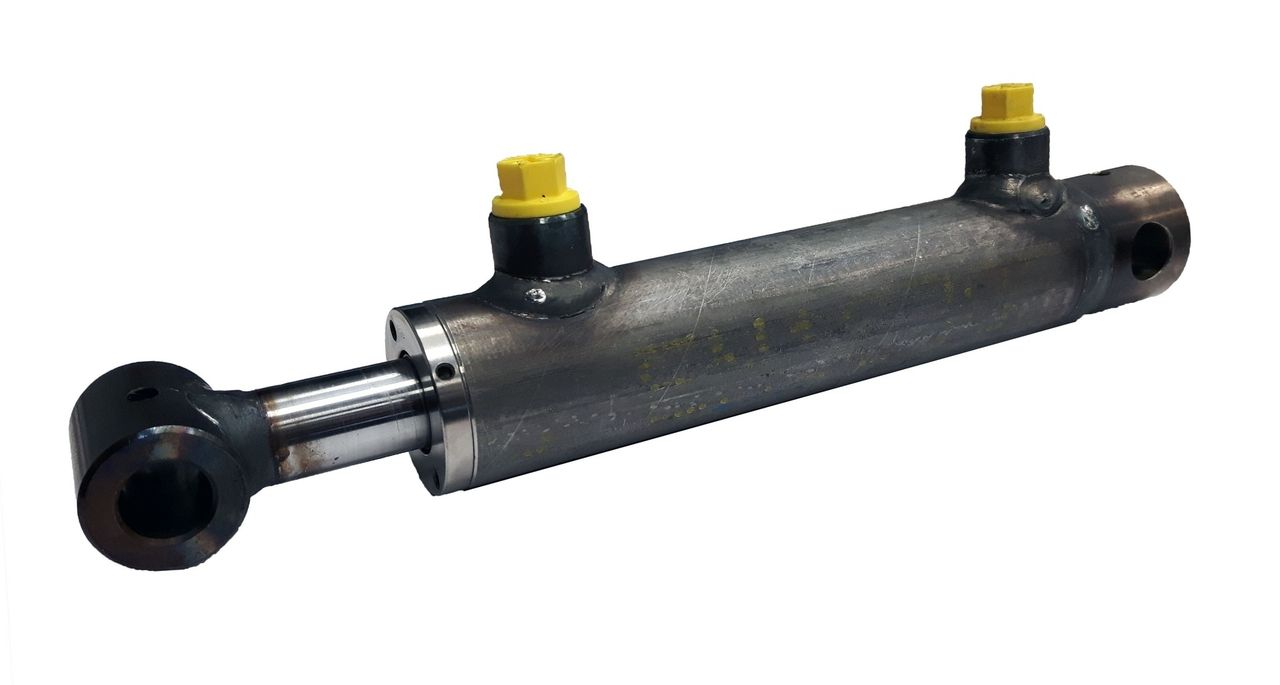

Double-acting cylinder 100x50x1500 with mounting

€646.39

Out of stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 100x50x1500 with mounting

Technical properties:

Operating pressure: 200 bar
Maximum pressure: 300 bar
Temperature: -30°C to 90°c
Chrome-plated rod: steel UNI C45
Chrome plating thickness: chrome 20 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Max. operating speed: 0.5 m/s

Technical specifications:

Dimension ØA (Rod): 50mm
Dimension Øb (bore): 100mm
Dimension Z (Stroke): 1500mm
Dimension E: 1725mm
Dimension C: 28mm
Dimension D: 30.5mm
Dimension F: 70mm
Dimension G: 115mm
Dimension H: 75mm
Dimension I: 60mm
Dimension J: 48mm
Dimension K: 60mm
Dimension L: 17mm
Port (M): 1/2" BSP
Volume: 11.78 L
Weight: 67.7 kg

*For sending cylinders of 30kg or more, we charge a one-time additional shipping fee per shipment
