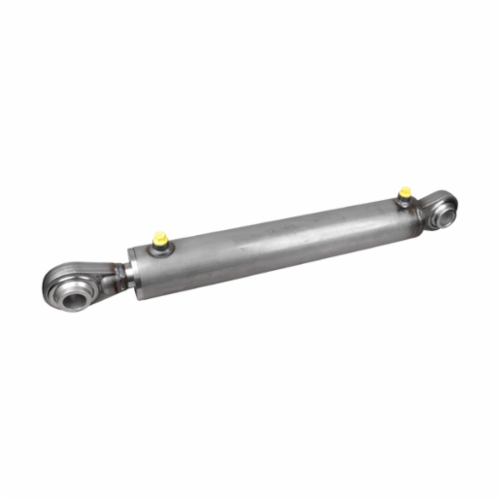

Double-acting cylinder 100x60x600 mm with spherical joint

€513.66

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 100x60x600 mm with spherical joint

Operating pressure:180 bar
Maximum pressure:210 bar
Temperature: -25 °C; +80 °c
Chrome-plated rod:steel UNI C45
Chrome plating thickness: 25 micron + / - 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed:0.5 m/s

Technical specifications:

Dimension S (Rod): 60mm
Dimension K (Stroke): 600mm
Dimension AL (Bore): 100 mm
Dimension D (Diameter): 115 mm
Weight: 45.74 kg
Port (E): 1/2 "
Dimension Z: 980mm
Dimension ØP: 40.2mm
Dimension H: 108mm
Dimension V: 75mm
Dimension M: 85mm
Dimension H1: 108mm
Dimension V1: 75mm
Dimension M1: 85 mm

*This is a custom-made product and cannot be returned
*For sending cylinders of 30kg or more, we charge a one-time additional shipping fee per shipment
