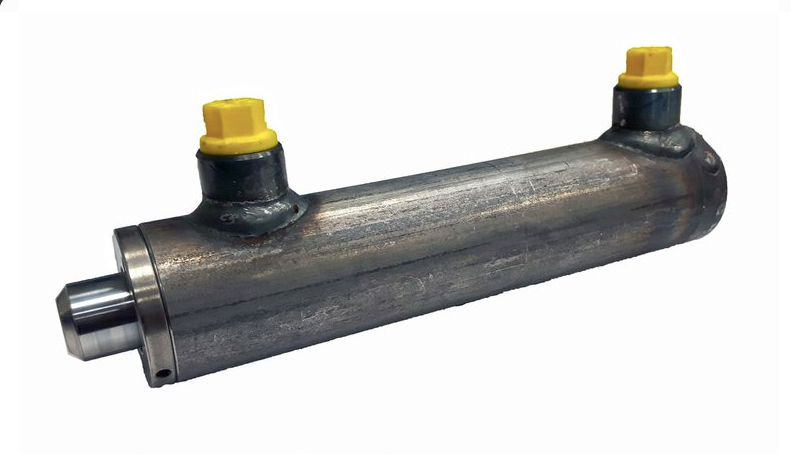

Double-acting cylinder 120x70x500 without mounting
Dubbelwerkende cilinder 120x70x500 zonder bevestiging
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
In stock
  €654.93

Description

Double-acting cylinder 120x70x500 without mounting

  • Operating pressure: 180 bar
  • Maximum pressure: 210 bar
  • Temperature: -25 °C; +80 °c
  • Weight: 52.0kg
  • Volume: 5.65 litres

Technical specifications

  • ØG: 140mm
  • ØA (rod): 70mm
  • ØB (bore): 120mm
  • Dimension Z (stroke): 500mm
  • Dimension H: 80 mm
  • Dimension E: 750mm
  • Dimension J: 40 mm
  • Dimension K: 82 mm
  • Dimension L: 17 mm
  • Port M: 1/2"
  • Dimension P: 6mm
*For sending cylinders of 30kg or more, we charge a one-time additional shipping fee per shipment
