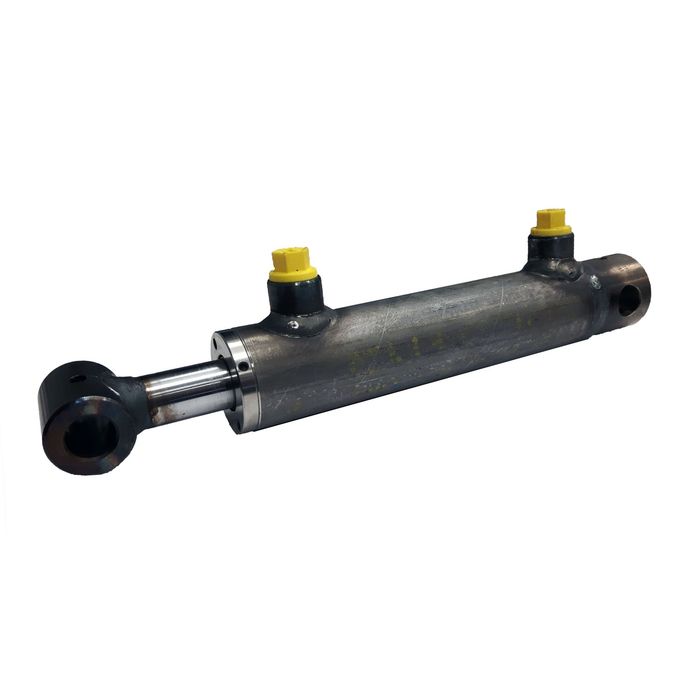

Double-acting cylinder 120x70x700 with mounting
€1,072.14
In stock
Double-acting cylinder 120x70x700 with mounting
Technical properties:
- Operating pressure: 200 bar
- Maximum pressure: 300 bar
- Temperature: -30°C to 90°c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: chrome 20 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Max. operating speed: 0.5 m/s
Technical specifications:
- Dimension ØA (Rod): 70mm
- Dimension Øb (bore): 120mm
- Dimension Z (Stroke): 700mm
- Dimension E: 970mm
- Dimension C: 40mm
- Dimension D: 40.5mm
- Dimension F: 80mm
- Dimension G: 140mm
- Dimension H: 55mm
- Dimension I: 80mm
- Dimension J: 65mm
- Dimension K: 82mm
- Dimension L: 17mm
- Port (M): 1/2" BSP
- Weight: 73.2 kg
