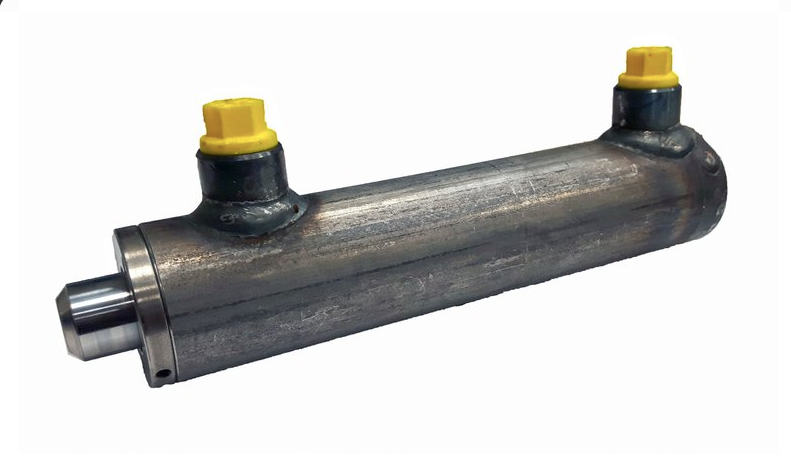

Double-acting cylinder 120x70x700 without mounting
€803.57
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 120x70x700 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Weight: 64.4kg
- Volume: 7.91 litres
Technical specifications
- ØG: 140mm
- ØA (rod): 70mm
- ØB (bore): 120mm
- Dimension Z (stroke): 700mm
- Dimension H: 80 mm
- Dimension E: 950mm
- Dimension J: 40 mm
- Dimension K: 82 mm
- Dimension L: 17 mm
- Port M: 1/2"
- Dimension P: 6mm
