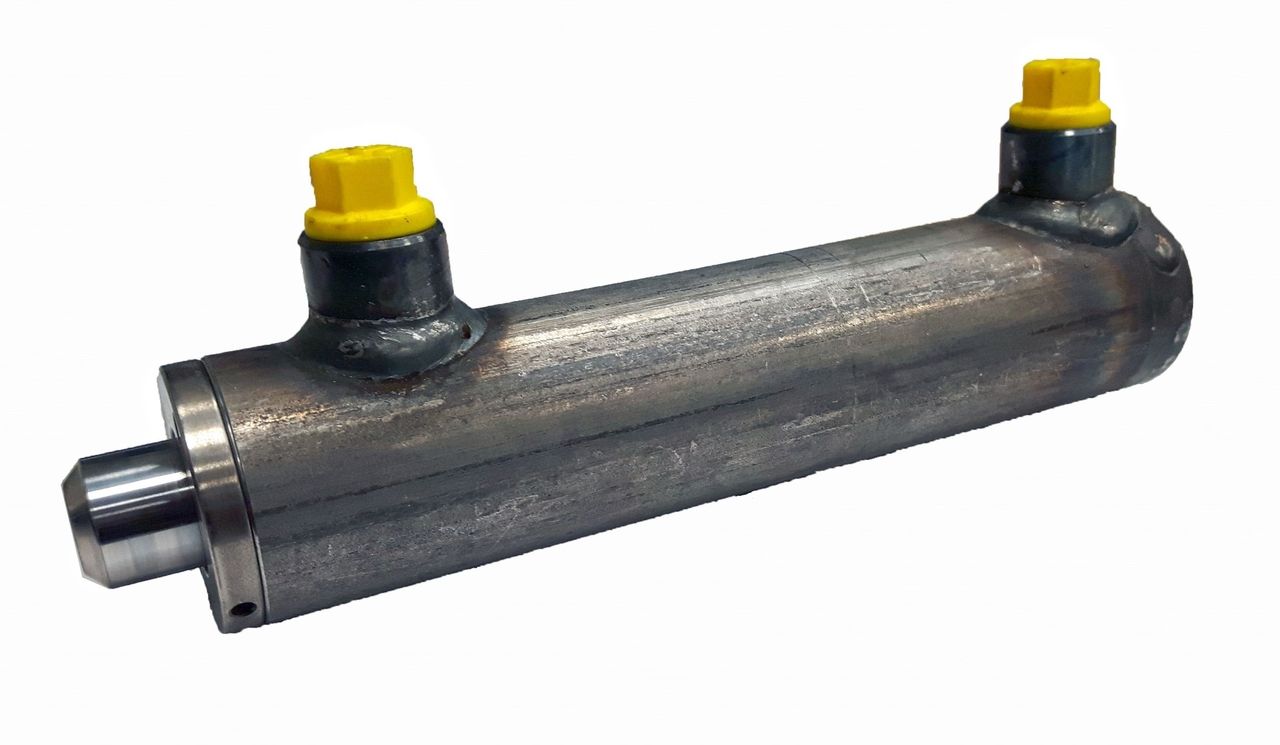

Double-acting cylinder 25x16x150 without mounting
€68.17
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 25x16x150 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed: 0.5 m/s
Technical specifications:
- Dimension S (Rod): 16mm
- Dimension K (Stroke): 150mm
- Dimension AL (Bore): 25mm
- Dimension D (Diameter): 35mm
- Weight: 1.25 Kg
- Port (E): 1/4"
- Dimension Z: 235mm
- Dimension L : 33mm
- Dimension L1: 15mm
- Dimension C: 17mm
