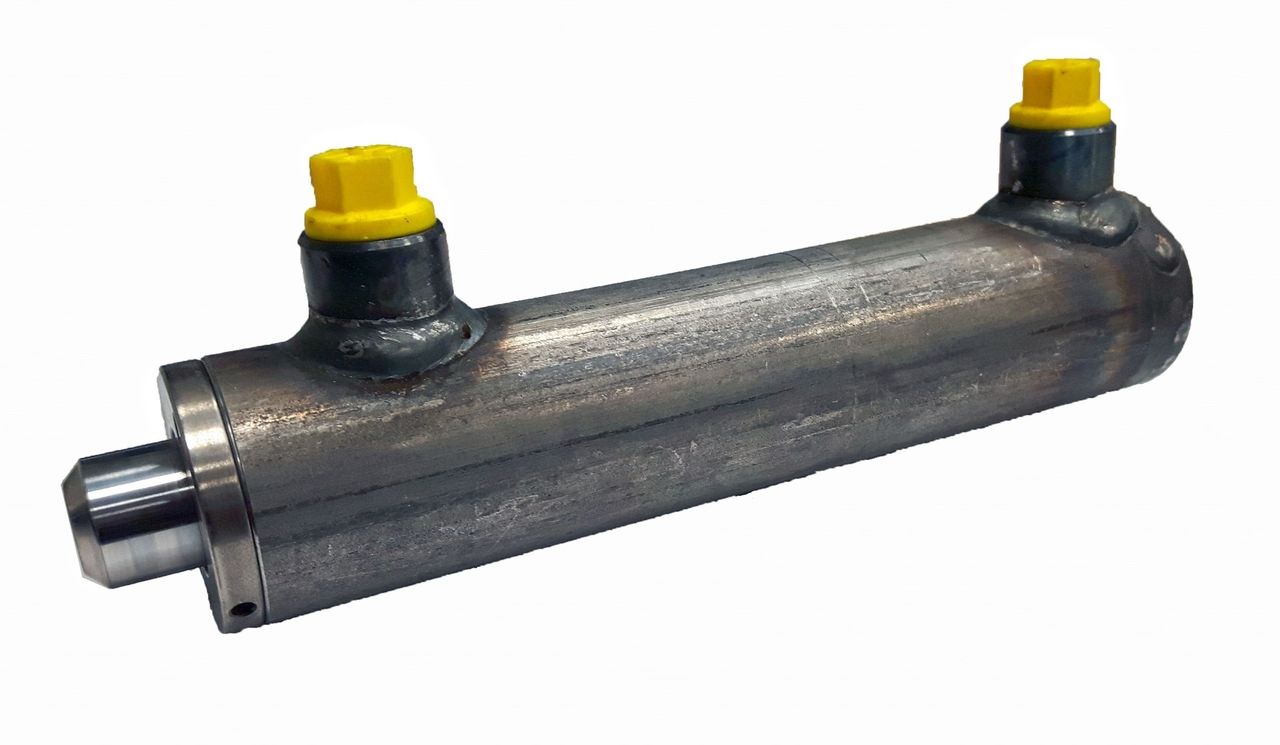

Double-acting cylinder 32x20x300 without mounting

€81.45

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 32x20x300 without mounting

Technical properties:

Operating pressure: 180 bar
Maximum pressure: 210 bar
Temperature: -25°C to +80°c
Chrome-plated rod: steel UNI C45
Chrome plating thickness: 25 micron + / - 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed: 0.5 m/s

Technical specifications:

Dimension S (Rod): 20mm
Dimension K (Stroke): 300mm
Dimension AL (Bore): 32 mm
Dimension D (Diameter): 42 mm
Weight: 3.00 kg
Port (E): 1/4"
Dimension Z: 430 mm
Dimension L: 33mm
Dimension L1: 20 mm
