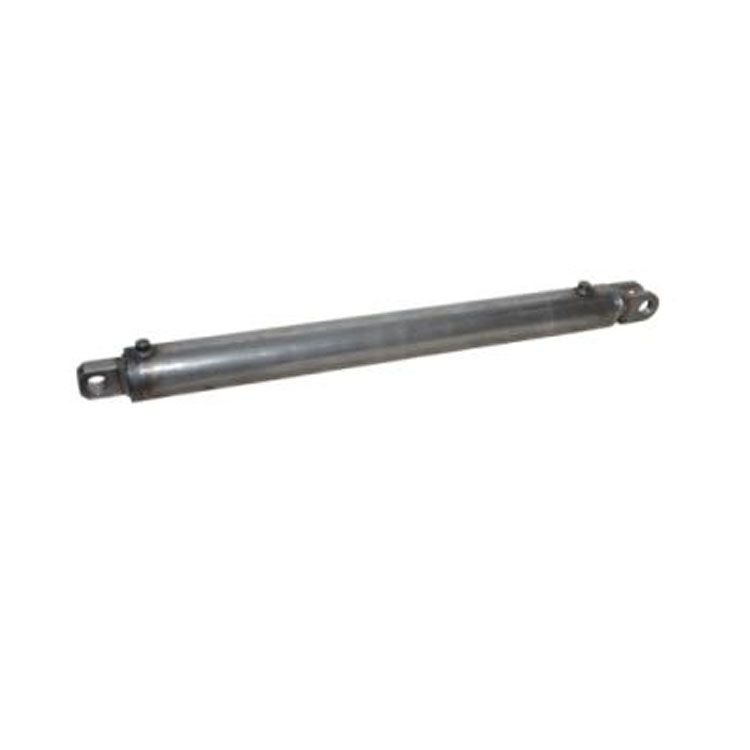

Double-acting cylinder 32x20x400 with clevis mounting
€120.70
In stock
Double-acting cylinder 32x20x400 with clevis mounting
Technical properties:
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 20mm
- Dimension K (Stroke): 400mm
- Dimension AL (Bore): 32mm
- Dimension D (Diameter): 42mm
- Weight: 4.19kg
- Port (E): 1/4"BSP
- Dimension Z: 589mm
- Dimension ØP: 16.2 mm
- Dimension H: 35 mm
- Dimension V: 16mm
- Dimension M: 34 mm
- Dimension H1: 35 mm
- Dimension V1: 20 mm
- Dimension M1: 25mm
