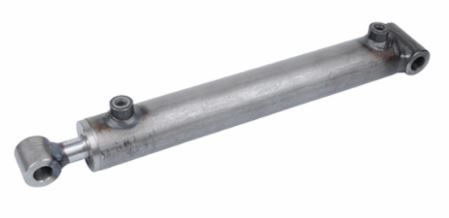

Double-acting cylinder 40x25x500 with wide mounting

€134.63

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 40x25x500 with wide mounting

Technical properties:

Operating pressure: 180 bar
Maximum pressure: 210 bar
Temperature: -25°C to 80°c
Chrome-plated rod: steel UNI C45
Chrome plating thickness: 25 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed: 0.5 m/s

Technical specifications:

Dimension S (Rod): 25mm
Dimension K (Stroke): 500mm
Dimension AL (Bore): 40mm
Dimension D (Diameter): 50mm
Weight: 6.78kg
Port (E): 1/4" BSP
Dimension Z: 665mm
Dimension ØP: 16.25mm
Dimension H: 35mm
Dimension V: 30mm
Dimension M: 17.5mm
Dimension H1: 35mm
Dimension V1: 60mm
Dimension M1: 17.5mm

*This is a custom-made product and cannot be returned
