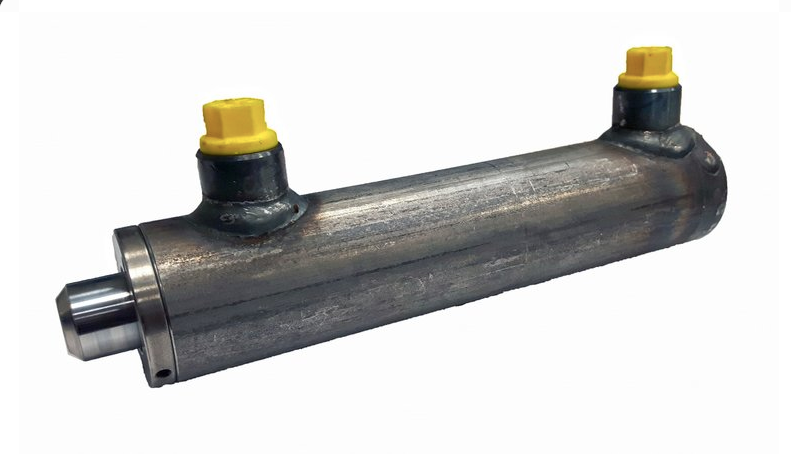

Double-acting cylinder 40x25x700 without mounting
€116.72
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 40x25x700 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Weight: 8.1kg
- Volume: 0.88 litres
Technical specifications:
- ØG: 50mm
- ØA (rod): 25mm
- ØB (bore): 40mm
- Dimension Z (stroke): 700mm
- Dimension H: 33mm
- Dimension E: 830mm
- Dimension J: 29mm
- Dimension K: 40mm
- Dimension L: 16mm
- Port M: 3/8"
- Dimension P: 4mm
