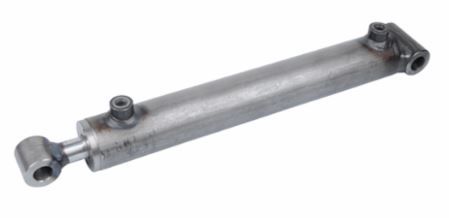

Double-acting cylinder 50x25x100 with wide mounting

Technical properties:

Operating pressure: 180 bar
Maximum pressure: 210 bar
Temperature: -25°C to 80°c
Chrome-plated rod: steel UNI C45
Chrome plating thickness: 25 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed: 0.5 m/s

Technical specifications:

Dimension S (Rod): 25mm
Dimension K (Stroke): 100 mm
Dimension AL (Bore): 50mm
Dimension D (Diameter): 60mm
Weight: 4.11 kg
Port (E): 3/8" BSP
Dimension Z: 280mm
Dimension ØP: 20.25mm
Dimension H: 40mm
Dimension V: 40mm
Dimension M: 20mm
Dimension H1: 40mm
Dimension V1: 70mm
Dimension M1: 20mm

*This is a custom-made product and cannot be returned
