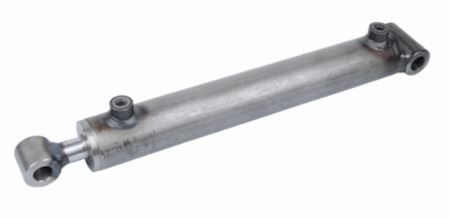

Double-acting cylinder 50x25x700 with wide mounting

Double-acting cylinder 50x25x700 with wide mounting

Technical properties:

• Operating pressure: 180 bar
• Maximum pressure: 210 bar
• Temperature: -25°C to 80°c
• Chrome-plated rod: steel UNI C45
• Chrome plating thickness: 25 micron +/- 5
• Tube: steel DIN 2393 - ISO H9
• Maximum operating speed: 0.5 m/s

Technical specifications:

• Dimension S (Rod): 25mm
• Dimension K (Stroke): 700 mm
• Dimension AL (Bore): 50mm
• Dimension D (Diameter): 60mm
• Weight: 10.50 kg
• Port (E): 3/8" BSP
• Dimension Z: 880mm
• Dimension ØP: 20.25mm
• Dimension H:  40mm
• Dimension V: 40mm
• Dimension M: 20mm
• Dimension H1: 40mm
• Dimension V1:  70mm
• Dimension M1: 20mm
