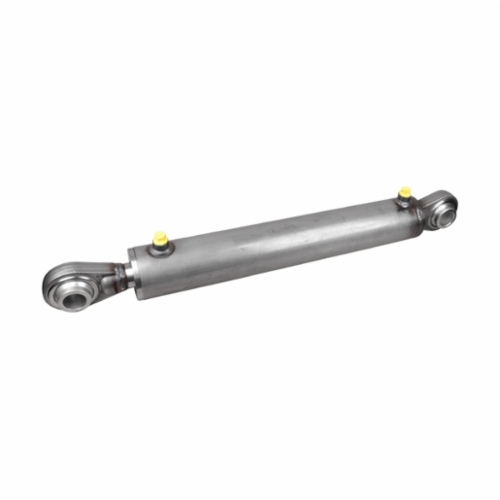

Double-acting cylinder 50x30x1000mm with spherical joint
€221.63
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 50x30x1000mm with spherical joint
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 30mm
- Dimension K (Stroke): 1000mm
- Dimension AL (Bore): 50mm
- Dimension D (Diameter): 60mm
- Weight:15.84 kg
- Port (E): 3/8 "
- Dimension Z: 1256mm
- Dimension ØP: 20.2mm
- Dimension H: 62mm
- Dimension V: 44mm
- Dimension M: 58 mm
- Dimension H1: 62mm
- Dimension V1: 44mm
- Dimension M1: 58mm
