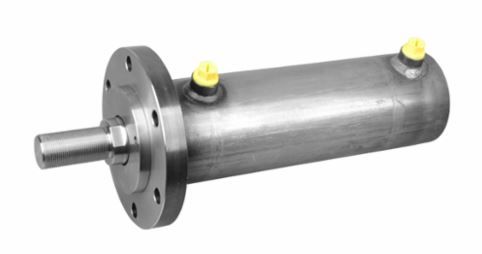

Double-acting cylinder 50x30x300mm with mounting flange
€219.64
In stock
✓ 50mm bore ✓ 30mm rod ✓ 300mm stroke ✓ 210 bar ✓ 3/8" BSP
Double-acting cylinder 50x30x300mm with mounting flange
Technical properties:
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: chrome 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed: 0.5 m/s
Technical specifications:
- Dimension S (Rod): 30mm
- Dimension K (Stroke): 300 mm
- Dimension AL (Bore): 50 mm
- Dimension D (Diameter): 60 mm
- Weight: 7.0 kg
- Port (E): 3/8" BSP
- Dimension Z: 470 mm
- Dimension L : 35 mm
- Dimension L1: 25 mm
- Dimension F: M20x1.5
- Dimension LF1: 40mm
- Dimension CH: 26 mm
- Dimension C1: 18mm
- Dimension ØN: 128mm
- Dimension ØINT: 105mm
- Dimension ØG: 13 x4
- Dimension O: 14 mm
- Number of flange holes: 4
