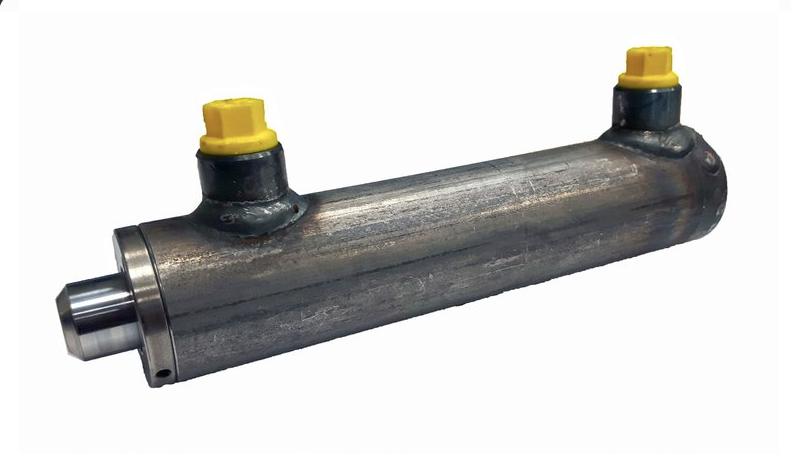

Double-acting cylinder 50x30x900 without mounting
€151.47
In stock
Double-acting cylinder 50x30x900 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Weight: 13.4kg
- Volume: 1.77 litres
Technical specifications
- ØG: 60mm
- ØA (rod): 30mm
- ØB (bore): 50mm
- Dimension Z (stroke): 900mm
- Dimension H: 36mm
- Dimension E: 1040mm
- Dimension J: 31mm
- Dimension K: 43mm
- Dimension L: 16mm
- Port M: 3/8"
- Dimension P: 4mm
