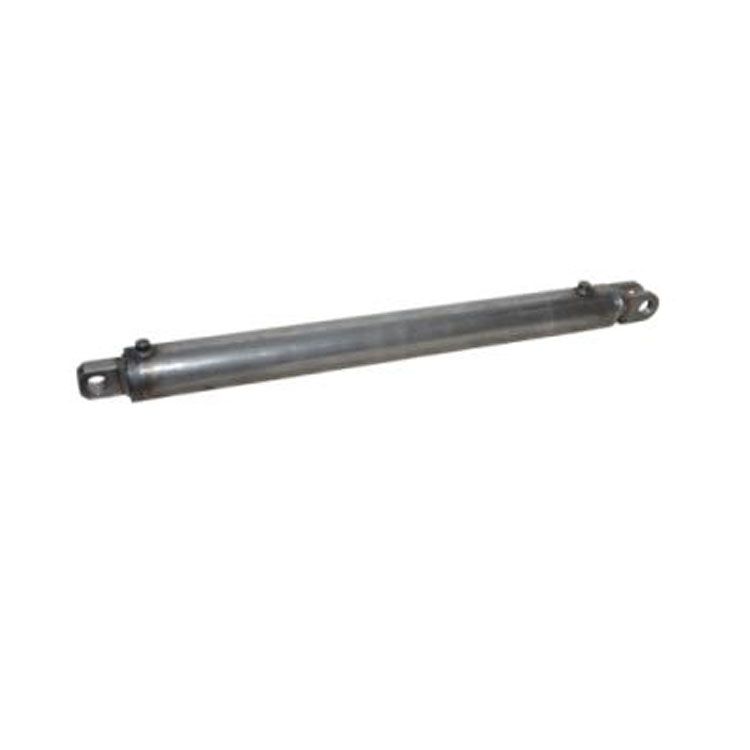

Double-acting cylinder 60x30x100 with clevis mounting

€145.77

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 60x30x100 with clevis mounting

Technical properties:

Operating pressure:180 bar
Maximum pressure:210 bar
Temperature: -25°C to 80°c
Chrome-plated rod:steel UNI C45
Chrome plating thickness: 25 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed:0.5 m/s

Technical specifications:

Dimension S (Rod): 30mm
Dimension K (Stroke): 100mm
Dimension AL (Bore): 60mm
Dimension D (Diameter): 70mm
Weight: 6.14 kg
Port (E): 3/8"BSP
Dimension Z: 340mm
Dimension ØP: 25.25mm
Dimension H: 50mm
Dimension V: 25 mm
Dimension M: 45 mm
Dimension H1: 50 mm
Dimension V1: 30 mm
Dimension M1: 35 mm

*This is a custom-made product and cannot be returned
