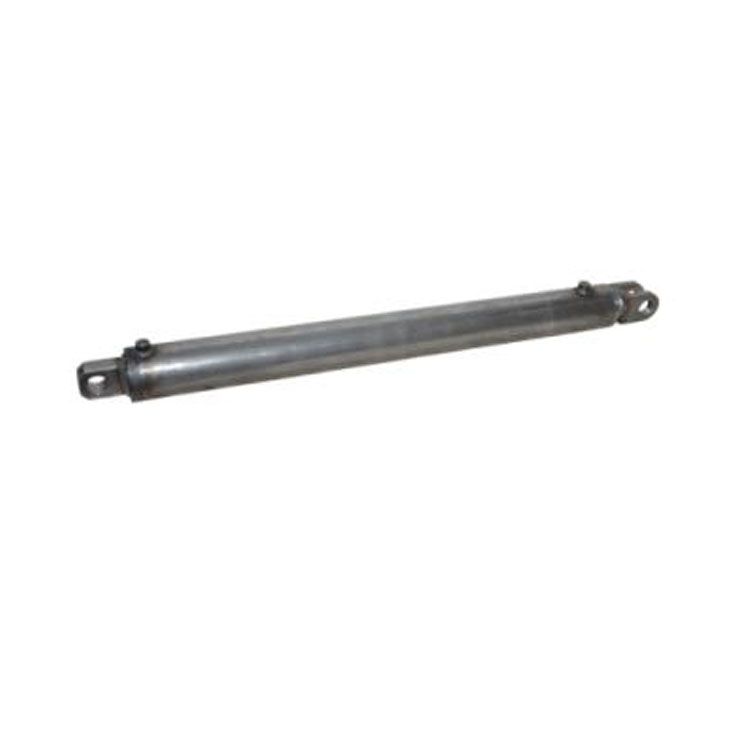

Double-acting cylinder 60x30x700 with clevis mounting
€221.90
In stock
Double-acting cylinder 60x30x700 with clevis mounting
Technical properties:
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 30mm
- Dimension K (Stroke): 700mm
- Dimension AL (Bore): 60mm
- Dimension D (Diameter): 70mm
- Weight: 14.33 kg
- Port (E): 3/8"BSP
- Dimension Z: 940mm
- Dimension ØP: 25.25mm
- Dimension H: 50mm
- Dimension V: 25 mm
- Dimension M: 45 mm
- Dimension H1: 50 mm
- Dimension V1: 30 mm
- Dimension M1: 35 mm
