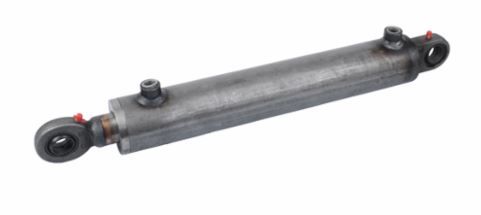

Double-acting cylinder 60x35x300 with spherical bearings

Technical properties:

Operating pressure:180 bar
Maximum pressure:210 bar
Temperature: -25°C to 80°c
Chrome-plated rod:steel UNI C45
Chrome plating thickness: 25 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed:0.5 m/s

Technical specifications:

Dimension S (Rod): 35mm
Dimension K (Stroke): 300mm
Dimension AL (Bore): 60mm
Dimension D (Diameter): 70 mm
Weight: 9.18 kg
Port (E): 3/8" BSP
Dimension Z: 550mm
Dimension ØP: 25mm
Dimension H: 64 mm
Dimension V: 20mm
Dimension M: 45mm
Dimension H1: 55mm
Dimension V1: 23mm
Dimension M1: 45mm

*This is a custom-made product and cannot be returned
