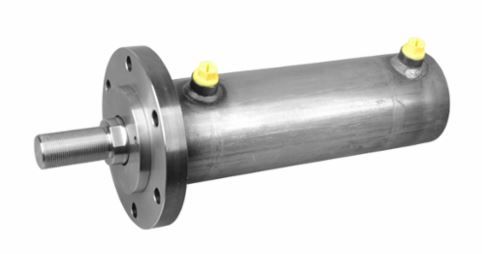

Double-acting cylinder 60x35x500mm with mounting flange
€262.36
In stock
✓ 60mm bore ✓ 35mm rod ✓ 500mm stroke ✓ 210 bar ✓ 3/8" BSP
Double-acting cylinder 60x35x500mm with mounting flange
Technical properties:
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: chrome 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed: 0.5 m/s
Technical specifications:
- Dimension S (Rod): 35mm
- Dimension K (Stroke): 500mm
- Dimension AL (Bore): 60 mm
- Dimension D (Diameter): 70 mm
- Weight: 12.94 kg
- Port (E): 3/8" BSP
- Dimension Z: 700mm
- Dimension L : 40mm
- Dimension L1: 30mm
- Dimension F: M27x2
- Dimension LF1: 50mm
- Dimension CH: 32mm
- Dimension C1: 20mm
- Dimension ØN: 142mm
- Dimension ØINT: 117mm
- Dimension ØG: 13 x4
- Dimension O: 16 mm
- Number of flange holes: 4
