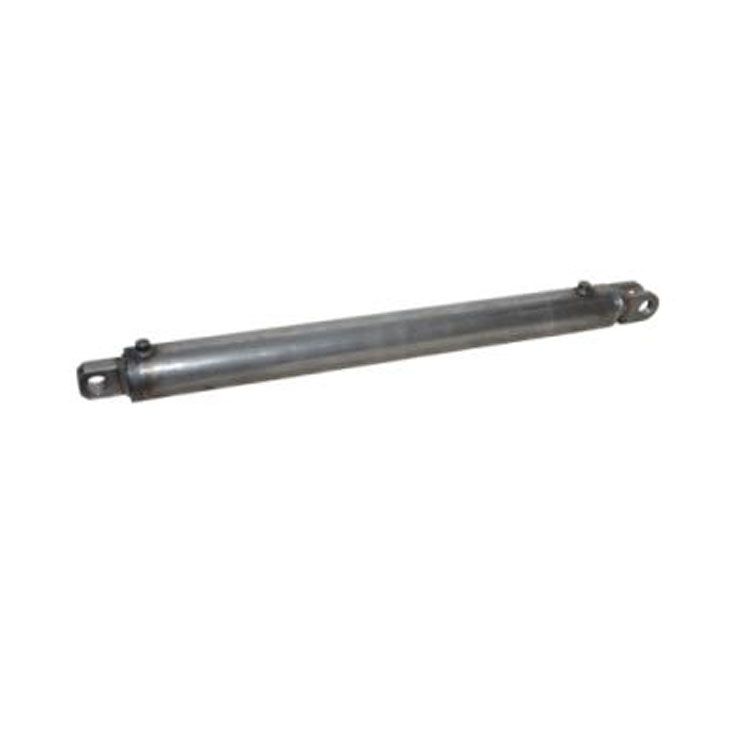

Double-acting cylinder 70x35x150 with clevis mounting
€173.86
In stock
Double-acting cylinder 70x35x150 with clevis mounting
Technical properties:
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 35mm
- Dimension K (Stroke): 150mm
- Dimension AL (Bore): 70mm
- Dimension D (Diameter): 80mm
- Weight: 8.28kg
- Port (E): 3/8"BSP
- Dimension Z: 390mm
- Dimension ØP: 25.25mm
- Dimension H: 50mm
- Dimension V: 25mm
- Dimension M: 45mm
- Dimension H1: 50mm
- Dimension V1: 30mm
- Dimension M1: 35mm
