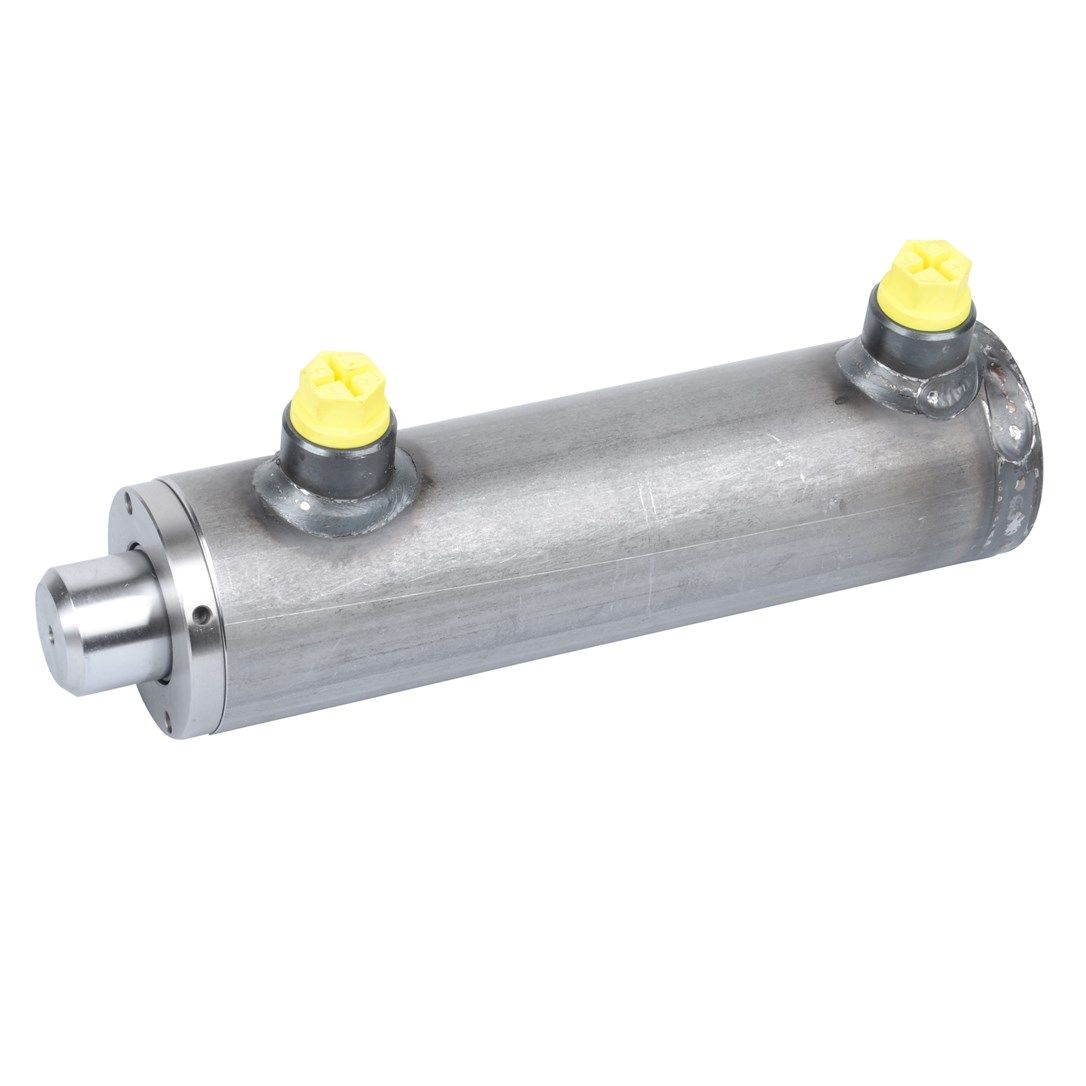

Double-acting cylinder 70x35x300 without mounting
€151.71
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 70x35x300 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C - +80 °c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2391 - ISO H8
- Maximum operating speed: 1 m/s
Technical specifications:
- Dimension S (Rod): 35mm
- Dimension K (Stroke): 300mm
- Dimension AL (Bore): 70mm
- Dimension D (Diameter): 80mm
- Weight: 9.40 Kg
- Port (E): 3/8"
- Dimension Z: 460mm
- Dimension L : 50mm
- Dimension L1: 33mm
- Dimension C: 23mm
