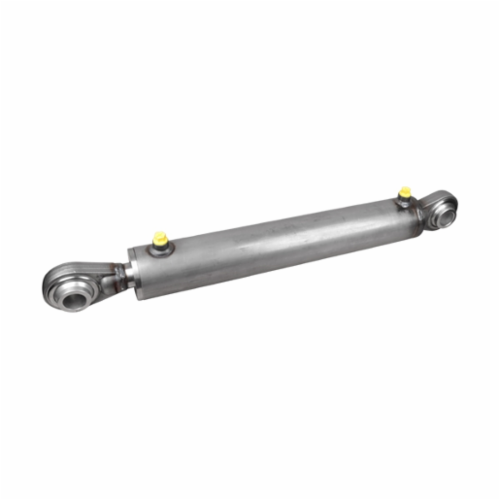

Double-acting cylinder 70x40x700mm with spherical joint
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 40 mm
- Dimension K (Stroke): 700 mm
- Dimension AL (Bore): 70mm
- Dimension D (Diameter): 80mm
- Weight: 20.48 kg
- Port (E): 3/8 "
- Dimension Z: 990mm
- Dimension ØP: 25.4mm
- Dimension H: 75mm
- Dimension V: 51mm
- Dimension M: 65mm
- Dimension H1: 75mm
- Dimension V1: 51mm
- Dimension M1: 65 mm
