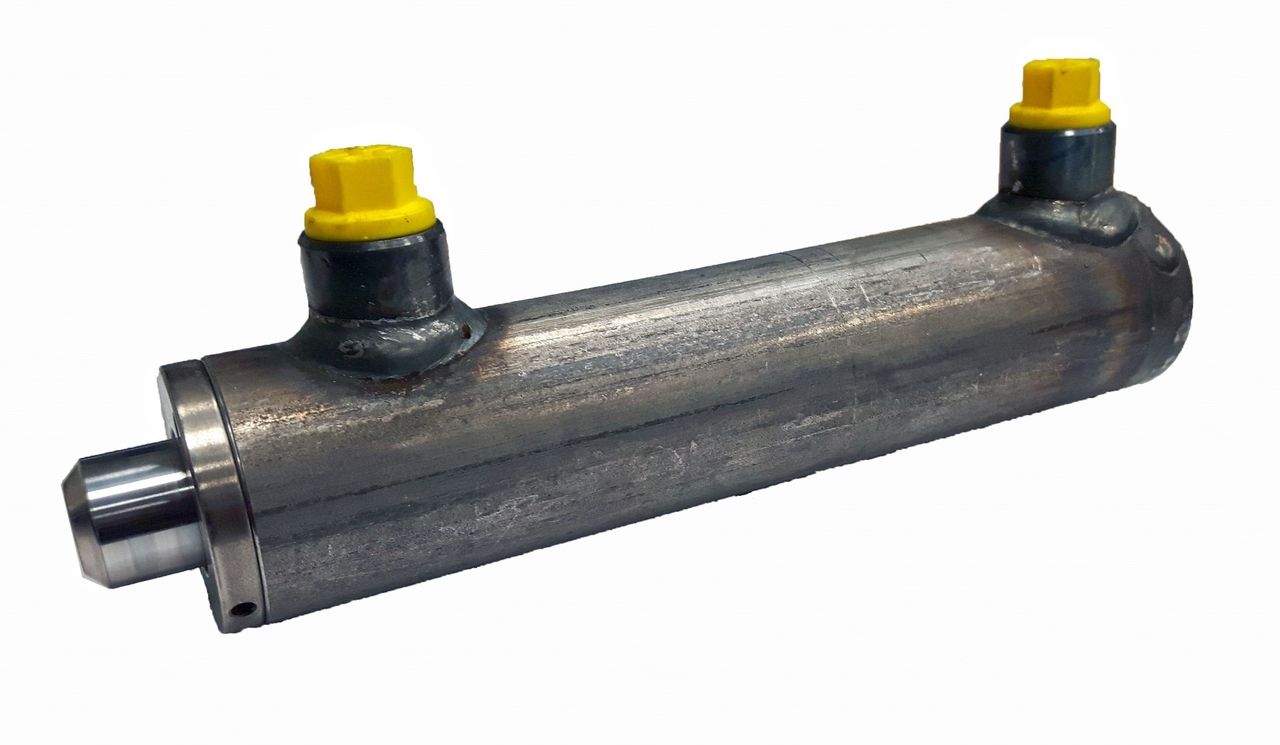

Double-acting cylinder 80x40x500 without mounting
€203.33
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 80x40x500 without mounting
Technical specifications:
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed: 0.5 m/s
Technical specifications:
- Dimension S (Rod): 40mm
- Dimension K (Stroke): 500mm
- Dimension AL (Bore): 80mm
- Dimension D (Diameter): 92mm
- Weight: 17.77 kg
- Port (E): 1/2"
- Dimension Z: 675 mm
- Dimension L: 60 mm
- Dimension L1: 35 mm
- Dimension C: 25 mm
