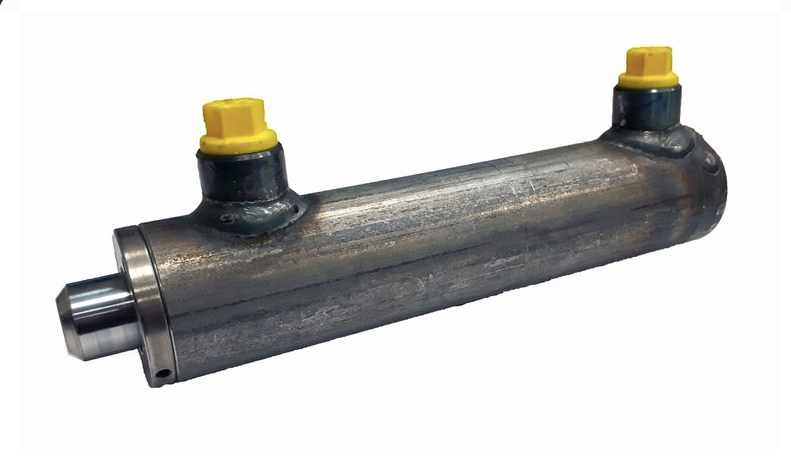

Double-acting cylinder 80x40x700 without mounting
€196.53
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 80x40x700 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Weight: 20.4kg
- Volume: 3.52 litres
Technical specifications
- ØG: 90mm
- ØA (rod): 40mm
- ØB (bore): 80mm
- Dimension Z (stroke): 700mm
- Dimension H: 49mm
- Dimension E: 875mm
- Dimension J: 33mm
- Dimension K: 54mm
- Dimension L: 16mm
- Port M: 3/8"
- Dimension P: 5mm
