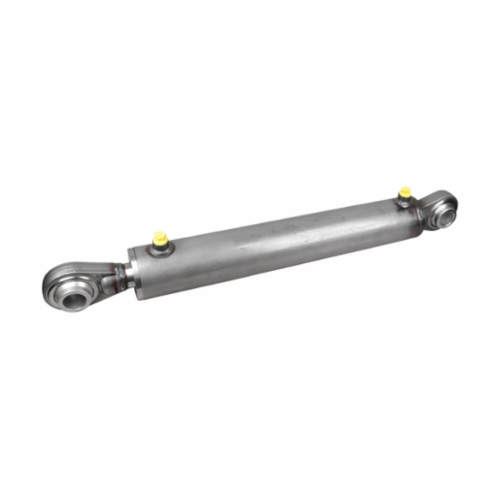

Double-acting cylinder 80x50x1000 mm with spherical joint

€399.25

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting cylinder 80x50x1000 mm with spherical joint

Operating pressure:180 bar
Maximum pressure:210 bar
Temperature: -25 °C; +80 °c
Chrome-plated rod:steel UNI C45
Chrome plating thickness: 25 micron + / - 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed:0.5 m/s

Technical specifications:

Dimension S (Rod): 50mm
Dimension K (Stroke):1000mm
Dimension AL (Bore): 80mm
Dimension D (Diameter): 92mm
Weight: 37.79 kg
Port (E): 1/2 "
Dimension Z:1310mm
Dimension ØP: 30.2mm
Dimension H: 83mm
Dimension V: 55mm
Dimension M: 65mm
Dimension H1: 83 mm
Dimension V1: 55mm
Dimension M1: 65 mm

*This is a custom-made product and cannot be returned
*For sending cylinders of 30kg or more, we charge a one-time additional shipping fee per shipment
