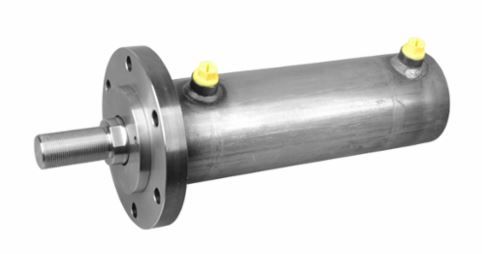

Double-acting cylinder 80x50x300mm with mounting flange
€346.92
In stock
✓ 80mm bore ✓ 50mm rod ✓ 300mm stroke ✓ 210 bar ✓ 1/2" BSP
Double-acting cylinder 80x50x300mm with mounting flange
Technical properties:
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel UNI C45
- Chrome plating thickness: chrome 25 micron +/- 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed: 0.5 m/s
Technical specifications:
- Dimension S (Rod): 50mm
- Dimension K (Stroke): 300 mm
- Dimension AL (Bore): 80 mm
- Dimension D (Diameter): 95 mm
- Weight: 19.90 kg
- Port (E): 1/2" BSP
- Dimension Z: 545mm
- Dimension L : 50 mm
- Dimension L1: 40 mm
- Dimension F: M36x2
- Dimension LF1: 70mm
- Dimension CH: 45 mm
- Dimension C1: 25 mm
- Dimension ØN: 181 mm
- Dimension ØINT: 149 mm
- Dimension ØG: 17 x6
- Dimension O: 18 mm
- Number of flange holes: 4
