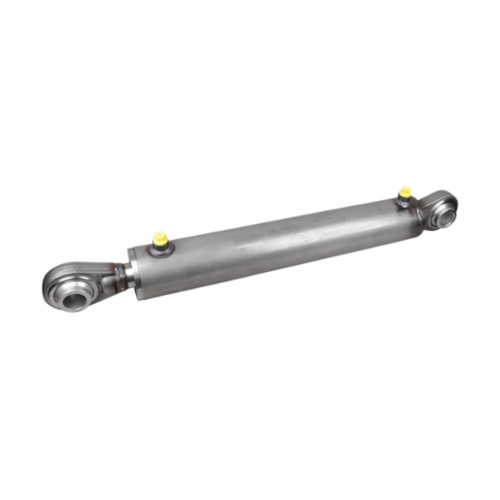

Double-acting cylinder 80x50x500 mm with spherical joint
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 50mm
- Dimension K (Stroke):500mm
- Dimension AL (Bore): 80mm
- Dimension D (Diameter): 92mm
- Weight: 23.50 kg
- Port (E): 1/2 "
- Dimension Z:810mm
- Dimension ØP: 30.2mm
- Dimension H: 83mm
- Dimension V: 55mm
- Dimension M: 65mm
- Dimension H1: 83 mm
- Dimension V1: 55mm
- Dimension M1: 65 mm
