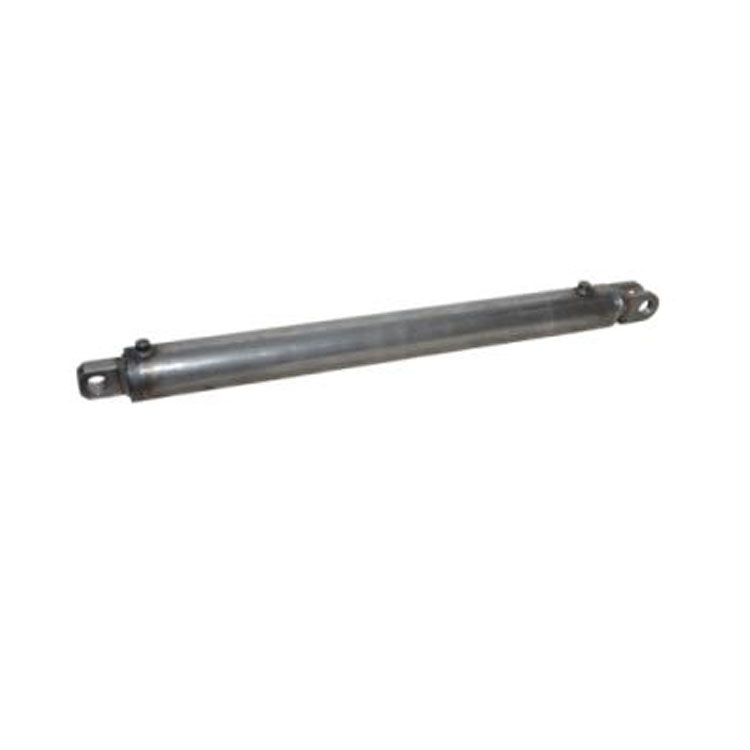

Double-acting cylinder 80x50x500 with clevis mounting
€325.91
In stock
Double-acting cylinder 80x50x500 with clevis mounting
Technical properties:
- Operating pressure:180 bar
- Maximum pressure:210 bar
- Temperature: -25 °C; +80 °c
- Chrome-plated rod:steel UNI C45
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2393 - ISO H9
- Maximum operating speed:0.5 m/s
Technical specifications:
- Dimension S (Rod): 50mm
- Dimension K (Stroke): 500mm
- Dimension AL (Bore): 80mm
- Dimension D (Diameter): 92mm
- Weight: 23.02 kg
- Port (E): 1/2"BSP
- Dimension Z: 775mm
- Dimension ØP: 30.25mm
- Dimension H: 60mm
- Dimension V: 30mm
- Dimension M: 50mm
- Dimension H1: 60mm
- Dimension V1: 35mm
- Dimension M1: 45mm
