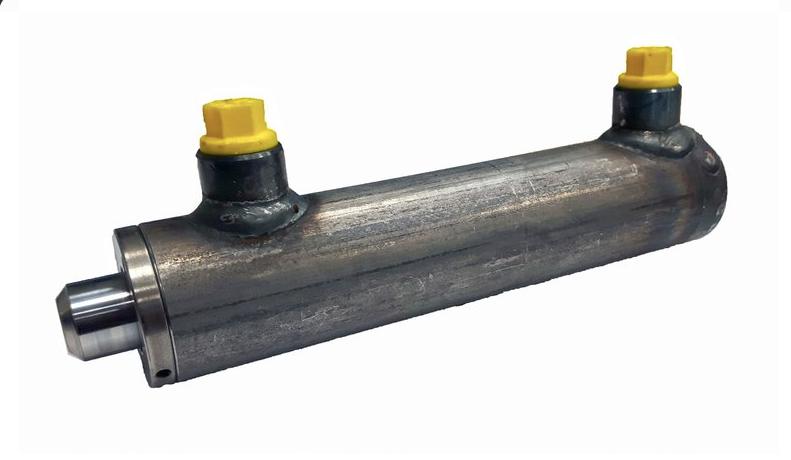

Double-acting cylinder 90x50x300 without mounting
€215.98
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting cylinder 90x50x300 without mounting
- Operating pressure: 180 bar
- Maximum pressure: 210 bar
- Temperature: -25 °C; +80 °c
- Weight: 19.4kg
- Volume: 1.90 litres
Technical specifications
- ØG: 105mm
- ØA (rod): 50mm
- ØB (bore): 90mm
- Dimension Z (stroke): 300mm
- Dimension H: 52mm
- Dimension E: 490mm
- Dimension J: 35mm
- Dimension K: 60mm
- Dimension L: 16mm
- Port M: 3/8"
- Dimension P: 6mm
