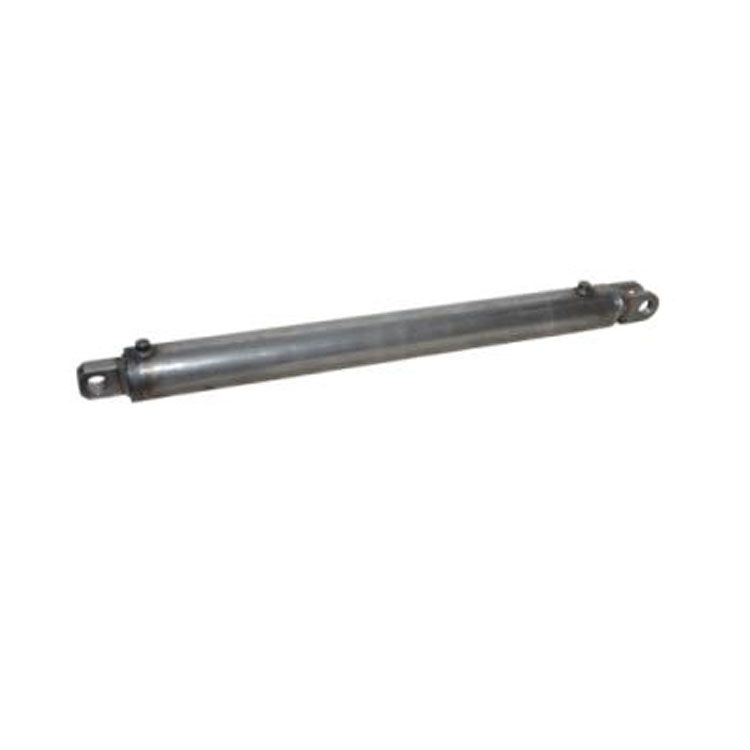

Double-acting cylinder 90x50x800 with clevis mounting

€535.22
In stock

 Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Double-acting cylinder 90x50x800 with clevis mounting

Technical properties:

  • Operating pressure:180 bar
  • Maximum pressure:210 bar
  • Temperature: -25°C to 80°c
  • Chrome-plated rod:steel UNI C45
  • Chrome plating thickness: 25 micron +/- 5
  • Tube: steel DIN 2393 - ISO H9
  • Maximum operating speed:0.5 m/s

Technical specifications:

  • Dimension S (Rod): 50mm
  • Dimension K (Stroke): 800mm
  • Dimension AL (Bore): 90mm
  • Dimension D (Diameter): 105mm
  • Weight: 40.32 kg
  • Port (E): 1/2"BSP
  • Dimension Z: 1116mm
  • Dimension ØP: 40.25mm
  • Dimension H: 80mm
  • Dimension V: 40mm
  • Dimension M: 70mm
  • Dimension H1: 70mm
  • Dimension V1: 40mm
  • Dimension M1: 60mm
*This is a custom-made product and cannot be returned
