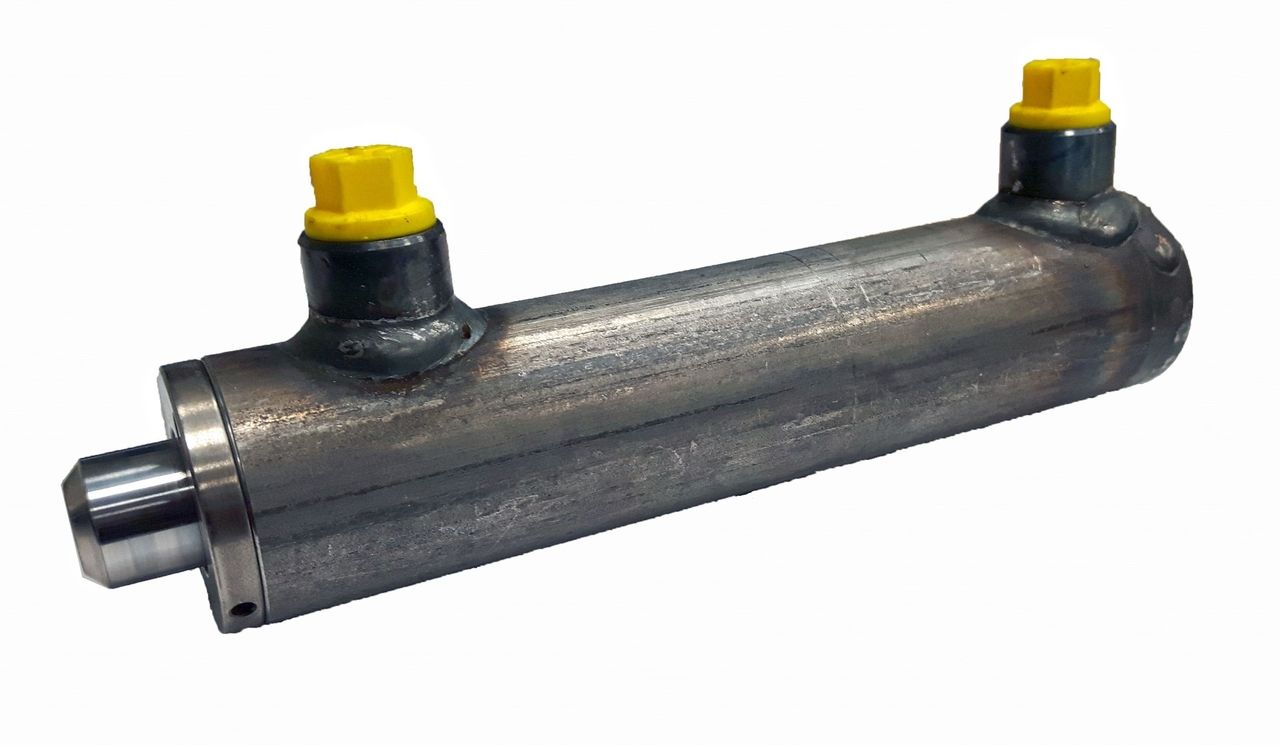

Double-acting high pressure cylinder 120x70x800 without mounting
€1,108.20
In stock
✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator
Double-acting high pressure cylinder 120x70x800 without mounting
Technical properties:
- Maximum pressure: 350 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel 20MnV6
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2391 - ISO H8
- Maximum operating speed: 1 m/s
Technical specifications:
- Dimension S (Rod): 70mm
- Dimension K (Stroke): 800mm
- Dimension AL (Bore): 120mm
- Dimension D (Diameter): 145mm
- Weight: 81.42 kg
- Port (E): 1/2" BSP
- Dimension Z: 1035mm
- Dimension L: 75mm
- Dimension L1: 58mm
- Dimension C: 33mm
