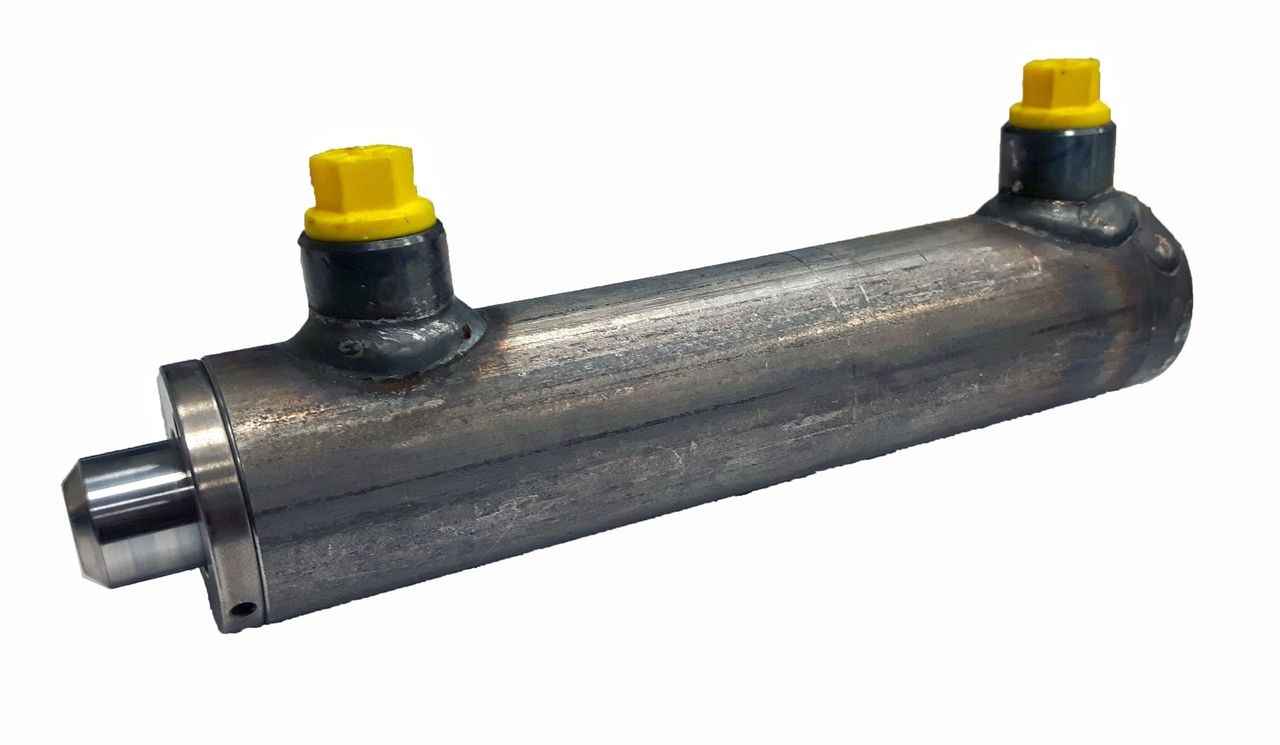

Double-acting high pressure cylinder 60x40x800 without mounting

Double-acting high pressure cylinder 60x40x800 without mounting

Technical properties:

• Maximum pressure: 350 bar
• Temperature: -25°C to 80°c
• Chrome-plated rod: steel 20MnV6
• Chrome plating thickness: 25 micron +/- 5
• Tube: Steel DIN 2391 - ISO H8
• Maximum operating speed: 1 m/s

Technical specifications:

• Dimension S (Rod): 40mm
• Dimension K (Stroke): 800mm
• Dimension AL (Bore): 60mm
• Dimension D (Diameter): 75mm
• Weight: 22.03 kg
• Port (E): 3/8" BSP
• Dimension Z: 950mm
• Dimension L: 57mm
• Dimension L1: 30mm
• Dimension C: 23mm
