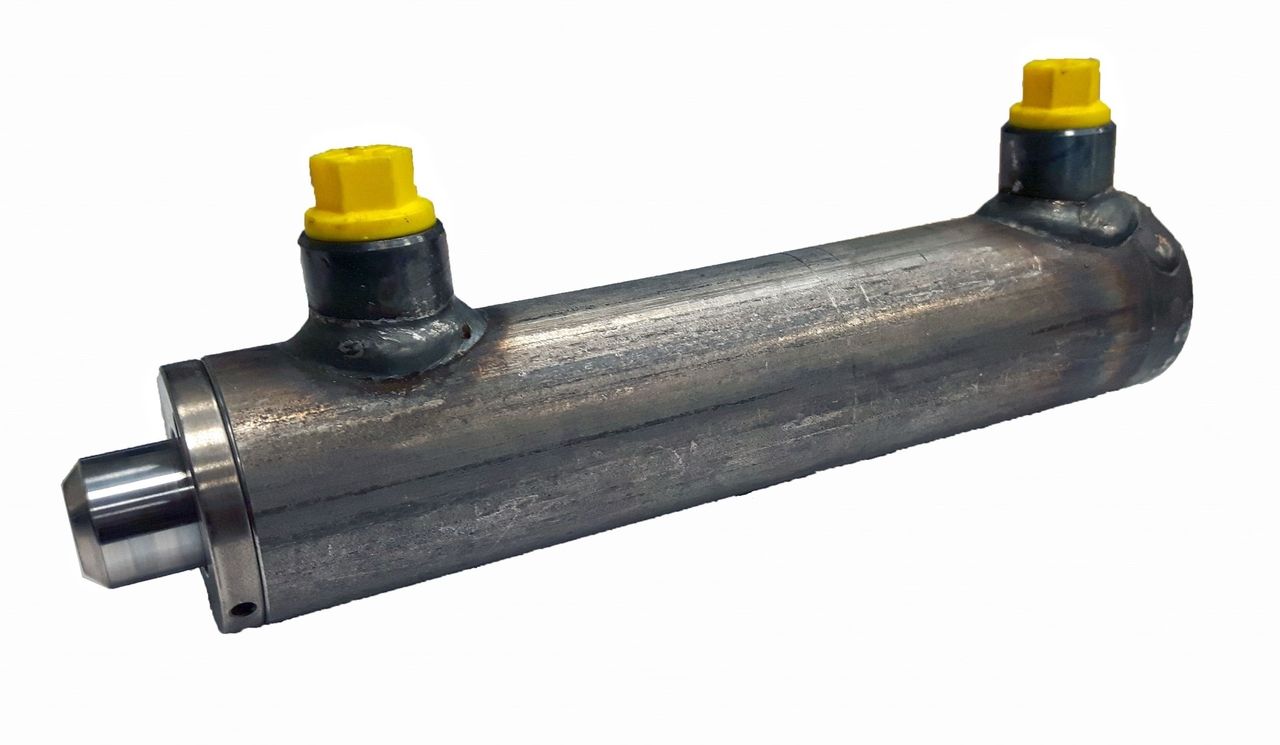

Double-acting high pressure cylinder 70x40x400 without mounting
€366.18
In stock
Double-acting high pressure cylinder 70x40x400 without mounting
Technical properties:
- Maximum pressure: 350 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel 20MnV6
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2391 - ISO H8
- Maximum operating speed: 1 m/s
Technical specifications:
- Dimension S (Rod): 40mm
- Dimension K (Stroke): 400mm
- Dimension AL (Bore): 70mm
- Dimension D (Diameter): 85mm
- Weight: 16.00 kg
- Port (E): 3/8" BSP
- Dimension Z: 575mm
- Dimension L: 60mm
- Dimension L1: 38mm
- Dimension C: 24mm
