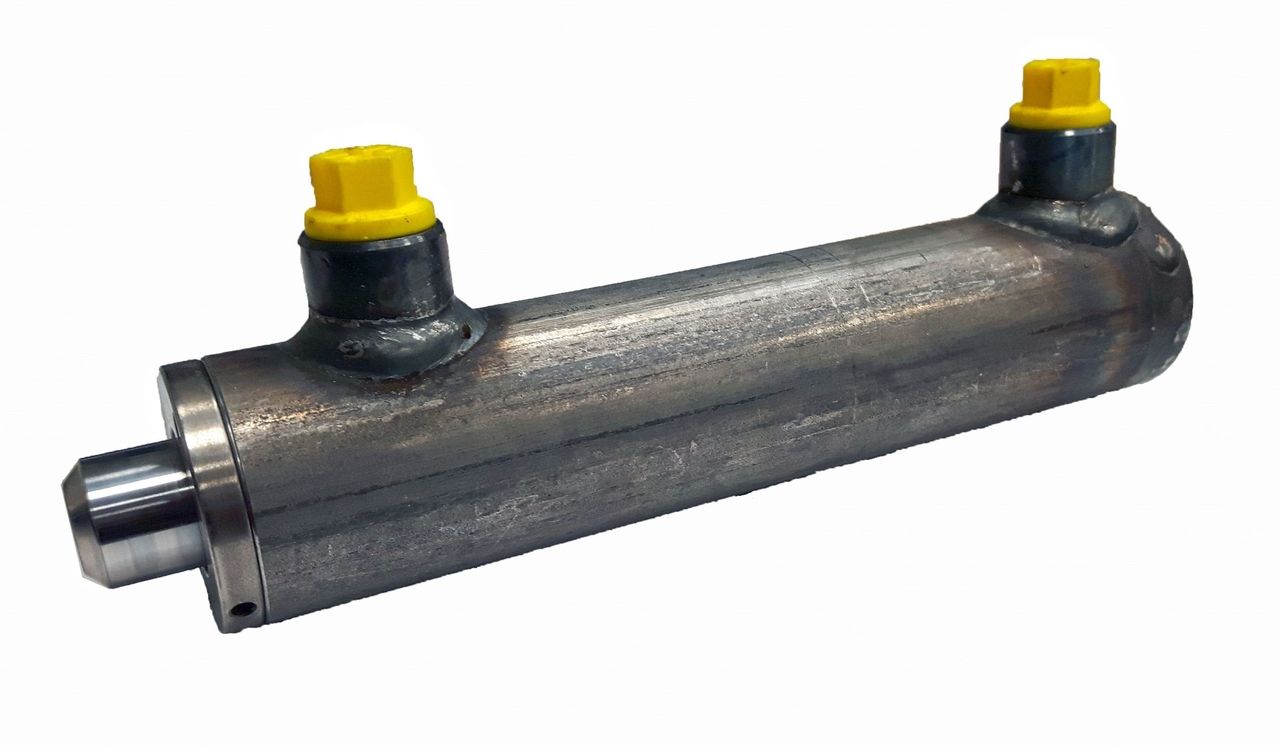

Double-acting high pressure cylinder 80x50x200 without mounting
€409.83
In stock
Double-acting high pressure cylinder 80x50x200 without mounting
- Maximum pressure: 350 bar
- Temperature: -25 °C to 80 °c
- Chrome-plated rod: Steel 20MnV6
- Chrome plating thickness: 25 micron + / - 5
- Tube: steel DIN 2391 - ISO H8
- Maximum operating speed: 1 m/s
Technical specifications:
- Dimension S (Rod): 50mm
- Dimension K (Stroke): 200mm
- Dimension AL (Bore): 80mm
- Dimension D (Diameter): 100mm
- Weight: 17.11 kg
- Port (E): 1/2" BSP
- Dimension Z: 395mm
- Dimension L: 67mm
- Dimension L1: 42mm
- Dimension C: 28mm
