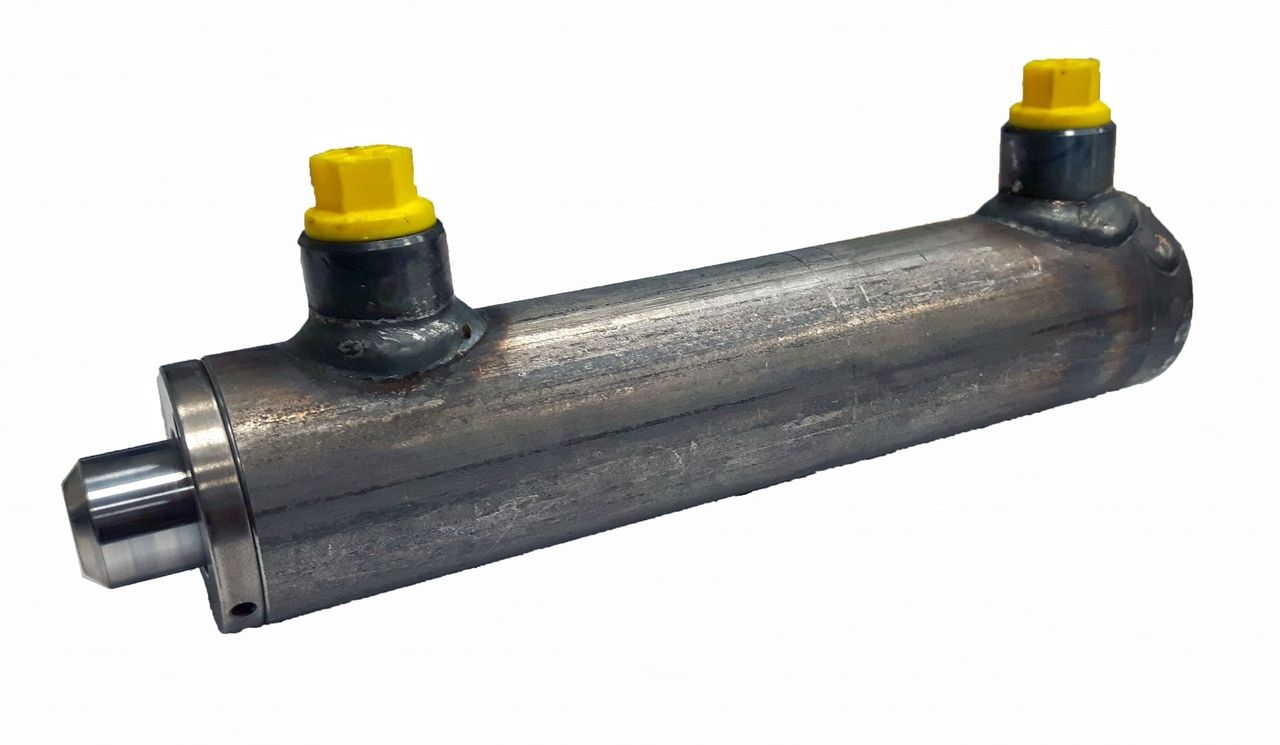

Double-acting high pressure cylinder 90x60x200 without mounting
€481.82
In stock
Double-acting high pressure cylinder 90x60x200 without mounting
Technical properties:
- Maximum pressure: 350 bar
- Temperature: -25°C to 80°c
- Chrome-plated rod: steel 20MnV6
- Chrome plating thickness: 25 micron +/- 5
- Tube: steel DIN 2391 - ISO H8
- Maximum operating speed: 1 m/s
Technical specifications:
- Dimension S (Rod): 60mm
- Dimension K (Stroke): 200mm
- Dimension AL (Bore): 90mm
- Dimension D (Diameter): 110mm
- Weight: 21.44 kg
- Port (E): 1/2" BSP
- Dimension Z: 400mm
- Dimension L: 70mm
- Dimension L1: 48mm
- Dimension C: 30mm
