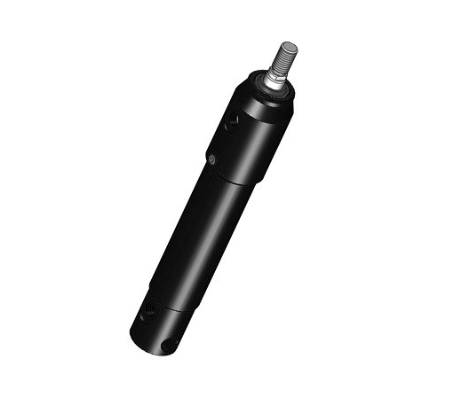

Double-acting micro cylinder with mounting 20x12x80

€176.29

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting micro cylinder with mounting 20x12x80

Technical properties:

Operating pressure: 200 bar
Maximum (test) pressure: 300 bar
Temperature: -30°C to 90°c
Weight: 0.76 kg
Volume: 29 cm3

Technical specifications:

Dimension ØG: 28mm
Dimension ØA (rod): 12mm
Dimension ØB (bore): 20mm
Dimension Z (stroke): 80mm
Dimension H: 102 mm
Dimension C: 9mm
Dimension D: 10mm
Dimension F: 35mm
Dimension E: 173 mm
Dimension J: 15 mm
Dimension K: 23.5 mm
Dimension L: 18 mm
Dimension I: 60mm
Port M: M10
Dimension N: 11mm
