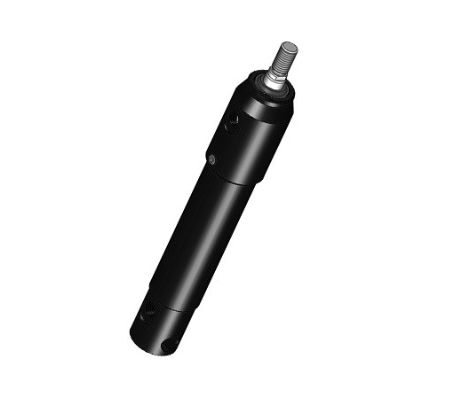

Double-acting micro cylinder with mounting 25x16x200

€158.55

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Double-acting micro cylinder with mounting 25x16x200

Technical properties:

Operating pressure: 200 bar
Maximum (test) pressure: 300 bar
Temperature: -30°C to 90°c
Weight: 1.78kg
Volume: 105 cm3

Technical specifications:

Dimension ØG: 35mm
Dimension ØA (rod): 16mm
Dimension ØB (bore): 25mm
Dimension Z (stroke): 200mm
Dimension H: 222mm
Dimension C: 11mm
Dimension D: 12mm
Dimension F: 40mm
Dimension E: 296mm
Dimension J: 18 mm
Dimension K: 25mm
Dimension L: 22mm
Dimension I: 65mm
Port M: M12
Dimension N: 9mm
