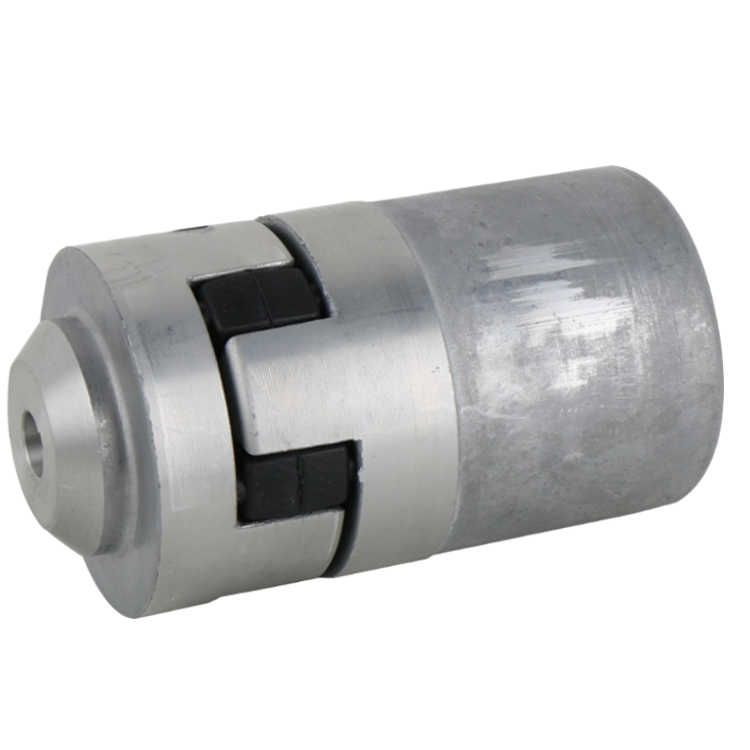

Elastic coupling Group 2 - 28mm

€32.55
In stock

Elastic coupling Group 2 - 28mm

  • Suitable for use between hydraulic pumps and electric/fuel engines
  • To be used in combination with a lantern piece
  • Material: Aluminium

Technical specification:

  • Item number: ND13
  • Unit: per piece
  • Size: 28mm
  • Pump output shaft: 1:8 tapered
  • Engine power: 2.2-4kW (3-5.5hp)
  • Pump group: 2
  • Dimension ØA: 55mm
  • Dimension ØW: 55mm
  • Dimension ØD: 28mm
  • Dimension ØP: 16mm
  • Dimension C: 18mm
  • Dimension E: 20mm
  • Dimension G: 58mm
  • Dimension L: 31mm
  • Dimension M: 18.3mm
  • Dimension X: 8mm
