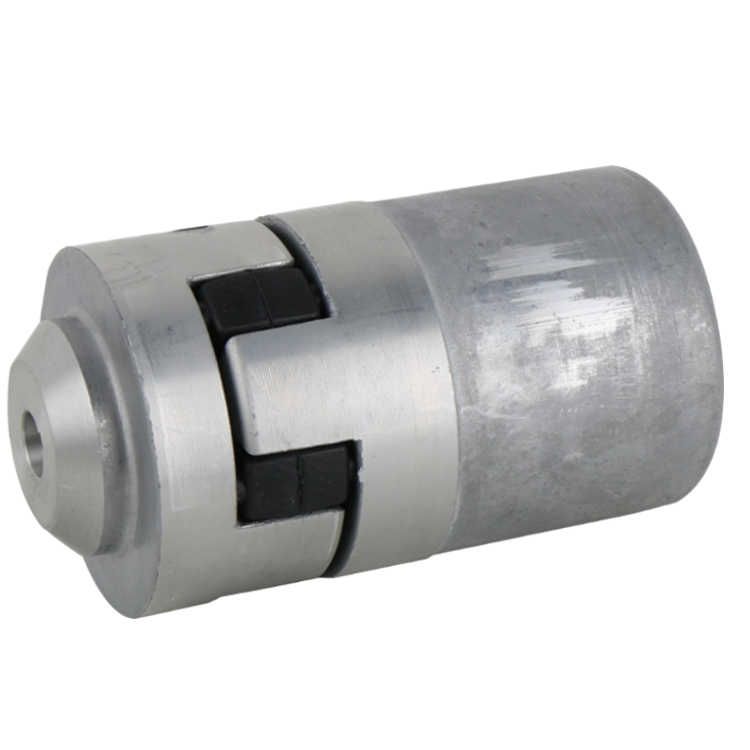

Elastic coupling Group 3 - 38mm
€67.37
In stock
Elastic coupling Group 3 - 38mm
- Suitable for use between hydraulic pumps and electric/fuel engines
- To be used in combination with a lantern piece
- Material: Aluminium
Technical specifications:
- Item number : ND17
- Unit: per piece
- Size: 38mm
- Pump output shaft: 1:8 tapered
- Engine power: 5.5-8.5kW (7.5-12.5hp)
- Pump group: 3
- Dimension ØA: 74mm
- Dimension ØW: 74mm
- Dimension ØD: 38mm
- Dimension ØP: 22.2mm
- Dimension C: 20mm
- Dimension E: 30mm
- Dimension G: 80mm
- Dimension L: 41mm
- Dimension M: 24.8mm
- Dimension X: 10mm
