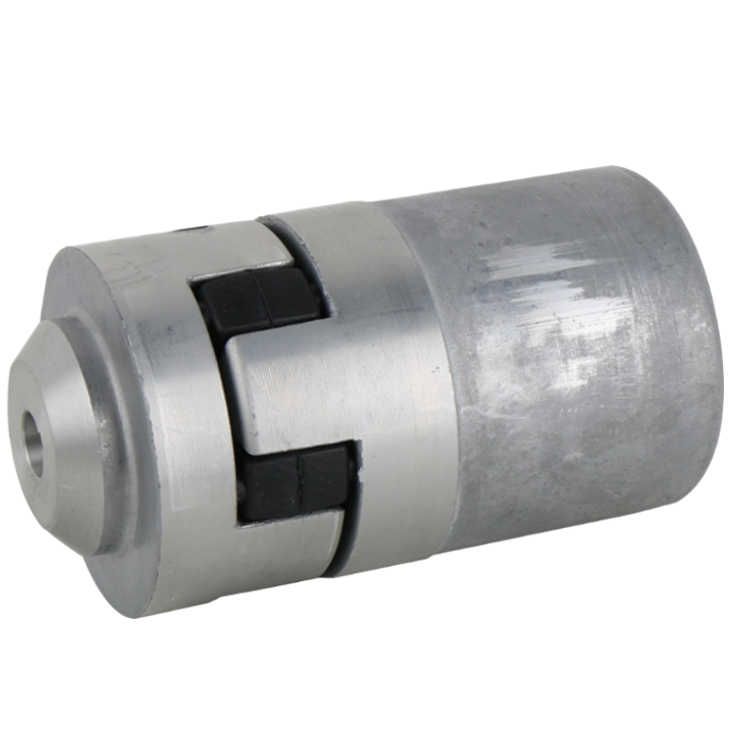

Elastic coupling Group 3 - 42mm

€117.24
In stock

Elastic coupling Group 3 - 42mm

  • Suitable for use between hydraulic pumps and electric/fuel engines
  • To be used in combination with a lantern piece
  • Material: Aluminium

Technical specification:

  • Item number : ND43C
  • Unit: per piece
  • Size: 42mm
  • Pump output shaft: 1:8 tapered
  • Engine power: 11-15 kW (15-20hp)
  • Pump group: 3
  • Dimension ØA: 104mm
  • Dimension ØW: 104mm
  • Dimension ØD: 42mm
  • Dimension ØP: 22.2mm
  • Dimension C: 24mm
  • Dimension E: 30mm
  • Dimension G: 110mm
  • Dimension L: 45mm
  • Dimension M: 24.8mm
  • Dimension X: 12mm
