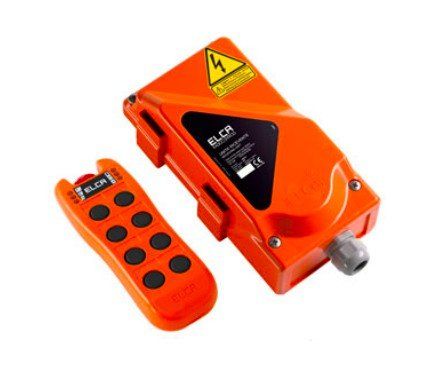

Elca Mago-Evo 8 buttons transmitter + receiver

Elca Mago-Evo 8 buttons transmitter + receiver
This Evo model from Elca is lightweight and very reliable. It is used mainly in the industrial sector to remotely control a wide variety of electrical systems. The control panel can withstand intensive use. The remote control consists of 6 double push buttons, 1 programmable button and a start/(emergency) stop button. The standard package includes: transmitter, receiver, Power input, charger housing, transmitter holder, battery charger, shoulder strap, user manual.


Technical specifications:

• Working Operating range: UHF
• ISM band operating frequency: 434,050 ÷ 434.790MHz
• Working, transconnection and storage temperature: -25 ÷ +55 ° c
• Working Operating range: 100m
• Passive safety stop time: <1 sec
• Active safety stop time: <0.35 s<

Transmitter properties:

• Antenna: built-in
• Power input: Li-Polymer battery pack 3.7
• Transmission consumption <30mA
• Power consumption: <0.15W
• R.F. emission power: <10mW ERP
• Low battery warning: ~5 minutes
• Lifetime of the charged battery at approx. 20 ° C: 8 p.m
• Ingress protection (IP rating): IP67
• Dimensions: 72x193x44mm
• Weight: 250 grams

Receiver properties:

• Antenna: built-in
• Power input: 48/55/110/230 Vac; 50/60Hz
• Consumption: <9 W
• Maximum current on outputs: 10 A
• Maximum current on stop circuit: 4 A
• Maximum voltage on contacts: 220 Vac / 50/60 Hz
• Ingress protection (IP rating): IP65
• Dimensions: 135x255x85mm
• Weight: 1200g
