Elca Mia 10 buttons transmitter + receiver
€1,298.88
In stock

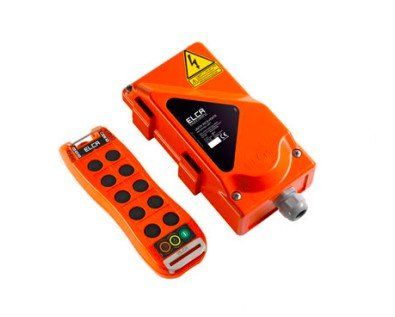

Elca Mia 10 buttons transmitter + receiver
This Mia model from Elca is lightweight, extensive and very reliable. It is used mainly in the industrial sector to remotely control a wide variety of electrical systems. The control panel can withstand intensive use. The remote control consists of 10 double push buttons, 2 single push buttons, programmable buttons and a start/(emergency) stop button. The standard package includes: transmitter, receiver, Power input, charger housing, transmitter holder, battery charger, shoulder strap, user manual.
This Mia model from Elca is lightweight, extensive and very reliable. It is used mainly in the industrial sector to remotely control a wide variety of electrical systems. The control panel can withstand intensive use. The remote control consists of 10 double push buttons, 2 single push buttons, programmable buttons and a start/(emergency) stop button. The standard package includes: transmitter, receiver, Power input, charger housing, transmitter holder, battery charger, shoulder strap, user manual.
Technical specifications:
- Working Operating range: UHF
- ISM band operating frequency: 434,050 ÷ 434.790MHz
- Working, transconnection and storage temperature: -25 ÷ +55 ° c
- Working Operating range: 150m
Transmitter properties:
- Antenna: built-in
- Power input: Li-Polymer battery pack 3.7
- Transmission consumption <45mA
- Power consumption: <0.15W
- R.F. emission power: <10mW ERP
- Low battery warning: ~5 minutes
- Lifetime of the charged battery at approx. 20 ° C: 8 p.m
- Ingress protection (IP rating): IP65
- Dimensions: 72x235x65mm
- Weight: 390 grams
Receiver properties:
- Antenna: built-in
- Power input: 48/55/110/230 Vac; 50/60Hz |
- Consumption: <9 W
- Maximum current on outputs: 10 A
- Maximum current on stop circuit: 4 A
- Maximum voltage on contacts: 230 Vac / 50/60 Hz
- Ingress protection (IP rating): IP65
- Dimensions: 135x255x85mm
- Weight: 1600g
