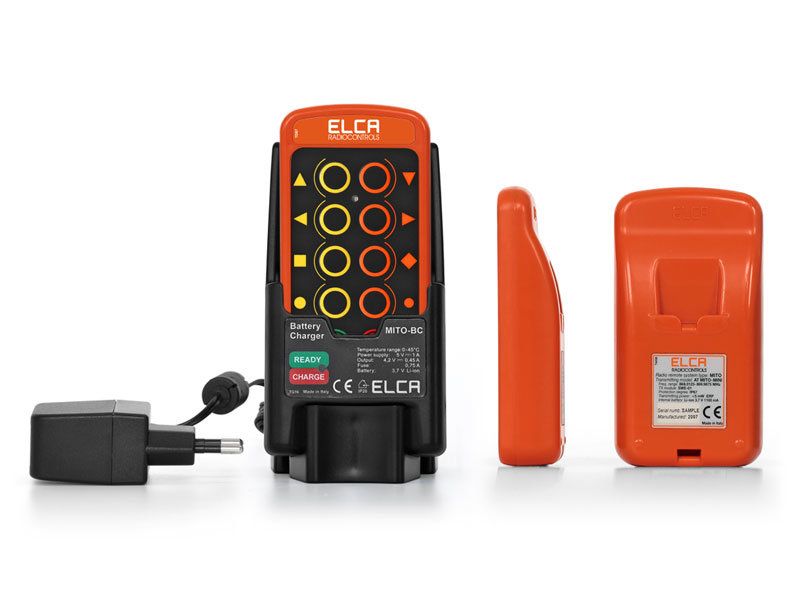

Elca MITO 8 buttons transmitter + receiver

Elca MITO 8 buttons transmitter + receiver
This model from Elca is small, lightweight and very reliable. It is used to remotely control a wide variety of electrical systems. The control panel can withstand intensive use. The built-in MITO electronics automatically searches for the best available frequency. The standard package includes: transmitter, receiver, Power input, charger housing, transmitter holder, user manual.


Technical specifications:

• Working Operating range: UHF
• ISM band operating frequency: 868.0125 ÷ 869.9875MHz
• Working, transconnection and storage temperature: -20 ÷ +55 ° c
• Working Operating range: 150m
• Passive safety stop time: <1 sec
• Active safety stop time: <0.35 s

Transmitter properties:

• Antenna: built-in
• Power input: Li-Polymer battery pack 3.7
• Transmission consumption: <25mA
• Power consumption: <0.1W
• R.F. emission power: <5mW ERP
• Low battery warning: ~10 minutes
• Lifetime of the charged battery at approx. 20 ° C: 50 hours
• Ingress protection (IP rating): IP67
• Dimensions: 60x113x26mm
• Weight: 100 grams

Receiver properties:

• Antenna: built-in
• Power input: 9-30 Vac/dc
• Consumption: <5 W
• Maximum current on outputs: 10 A in AC1, 10 A in DC1 at 30 V
• Maximum current on stop circuit: 6.3 A
• Maximum voltage on contacts: 230 Vac
• Ingress protection (IP rating): IP67
• Dimensions: 107x165x50mm
• Weight: 450g
