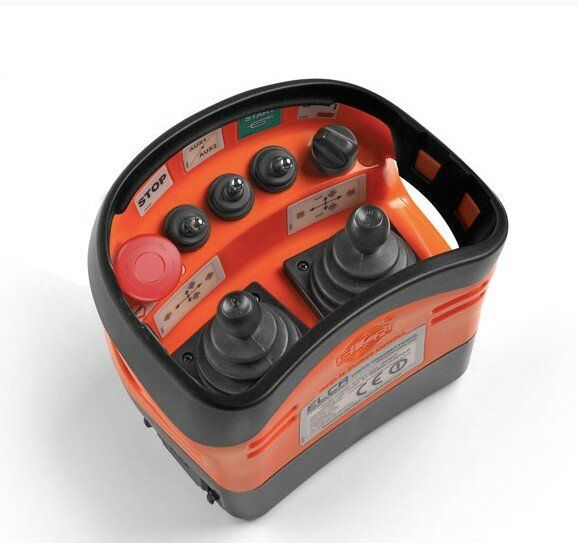

Elca punto portable proportional control for caterpillar tracks with 2 joysticks for 4 directions and receiver

Elca punto portable proportional control for caterpillar tracks with 2 joysticks for 4 directions and receiver

Special steering for caterpillar tracks. The 2 tracks can be operated with 1 joystick. Forward and backward and by operating the joystick to the left or right at the same time, the side you are steering towards is slowed down. The further you steer to this side, the more it slows down.


Technical specifications:

• Brand: Elca
• Includes receiver 8x PWM output (or 0-5V / 0-10V)
• With removable activation key
• With cable output 9-30Vdc
• Start and emergency stop button
• 2 joysticks (movable in 4 directions)
• 3 toggle switches
• 6x no/nc relays
• Including 2 batteries and charger 230VAC
• Equipped with: CE certificate
• Includes waist belt

Technical specifications control:

• Frequency Operating range: 433.100-434.775MHz (Bravo: 863.0-870.0MHz)
• Operating temperature: -20 / +50 °c
• Operating range: 150m
• Power input: NiMH 7.2V battery pack (Bravo Li-on 7.4V)
• R.F. emission power: <10mW ERP (Bravo: <25mW ERP “car power tuning”)
• Ingress protection (IP rating): IP65

Receiver technical specifications:

• Power input: 9-30 Vdc
• Ingress protection (IP rating): IP65
• Dimensions: 135x255x 85mm
• N. av. command's: 24/16 + 6 prop.
