Elca punto portable proportional control with 2 joysticks for 4 directions and receiver

Elca punto portable proportional control with 2 joysticks for 4 directions and receiver

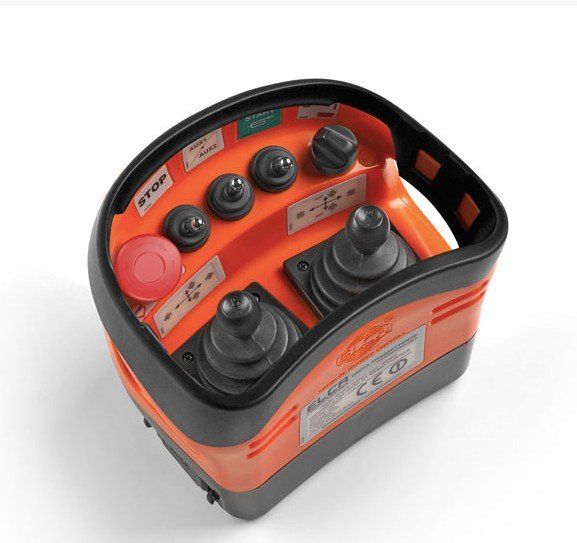

Compact joystick radio control with 2 joysticks for 4 directions that can easily be hung to carry and operate at the waist. Includes receiver that can be connected to the machine to be controlled.

Technical specifications:

• Brand: Elca
• Includes receiver 8x PWM output (or 0-5V / 0-10V)
• With removable activation key
• With cable output 9-30Vdc
• Start and (emergency) stop button
• 2 joysticks (movable in 4 directions)
• 3 toggle switches
• 6x no/nc relays
• Including 2 batteries and charger 230VAC
• Equipped with: CE certificate
• Includes waist belt/belt

Technical specifications control:

• Frequency range: 433.100-434.775 MHz (Bravo: 863.0-870.0 MHz)
• Working temperature: -20 / +50 °C
• Range:150m
• Power supply: NiMH 7.2V battery pack (Bravo Li-on 7.4V)
• R.F. emission power: <10mW ERP (Bravo: <25mW ERP “auto power tuning”)
• Protection level: IP65

Receiver technical specifications:

• Power supply: 9-30 Vdc
• Protection level: IP65
• Dimensions: 135 x 255 x 85 mm
• N. av. commands: 24/16 + 6 prop.
