Elca punto portable proportional control with 8 outputs and 6 levers including receiver

Elca punto portable proportional control with 8 outputs and 6 levers including receiver

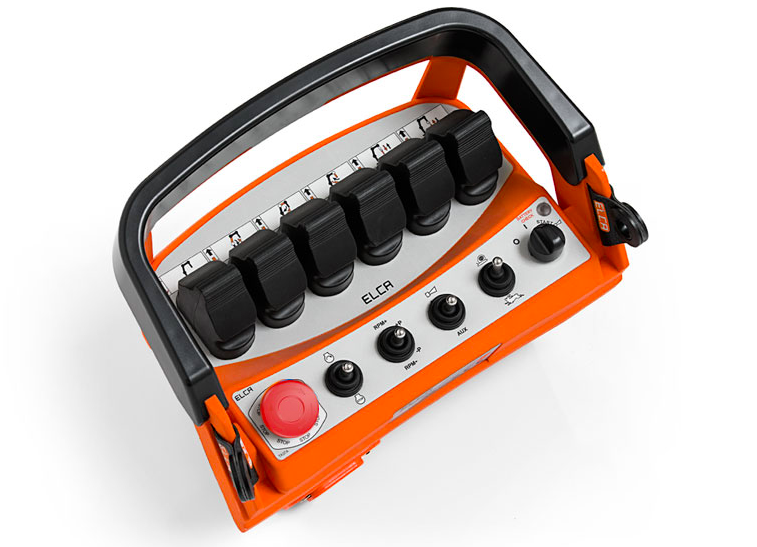

Compact joystick radio control with 8 outputs and 6 levers with internal antenna that can easily be hung to carry and operate it at the waist. The last 2 levers can be used for functions 7 and 8 by converting a rocker arm. Includes receiver that can be connected to the machine to be controlled.


Technical specifications:

• Brand: Elca
• Dimensions: 275x170x180mm
• Ingress protection (IP rating) control box: IP65
• Control box weight: 1.1kg
• Working distance wireless: 150m
• Including receiver with cable protection (8-30 Vdc)
• Receiver Ingress protection (IP rating): IP67
• Receiver dimensions: 220x200x75mm
• With removable activation key
• Start and emergency stop button
• 6 levers
• 8 PWM exits
• 4 toggle switches
• 6x no/nc relays
• Including charger LI-TE ION 12-30 Vdc
• Includes 2 rechargeable ones batteries LI-TE Li-Ion 7.4V 2.2Ah
• Operating temperature: -20 °c up to +50 °c
• Equipped with: CE certificate
• Includes waist belt
