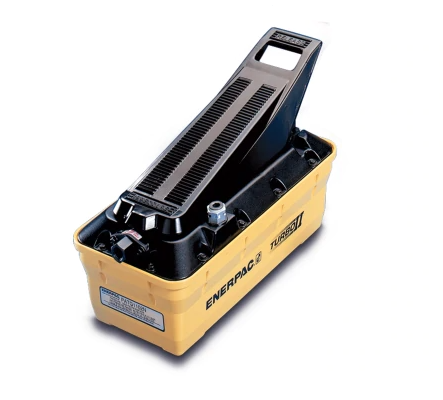

Enerpac pneumatic hydraulic pump 700 bar

Enerpac pneumatic hydraulic pump 700 bar

Technical properties:

• With built-in safety valve to prevent overload
• Externally adjustable pressure limiting valve
• Tank return port for use in applications with externally mounted valves

Technical specifications:

Brand: Enerpac
Model: PATG1102N
Weight: 8.2kg
Dimensions: 347 x 165 x 211mm
Max. pressure: 700 bar
Reservoir capacity: 2081 cm3
Usable oil capacity: 2081 cm3
Max. flow at nominal pressure: 0.16 l / min
Operating compressed air pressure: 2.8 - 8.8 bar
