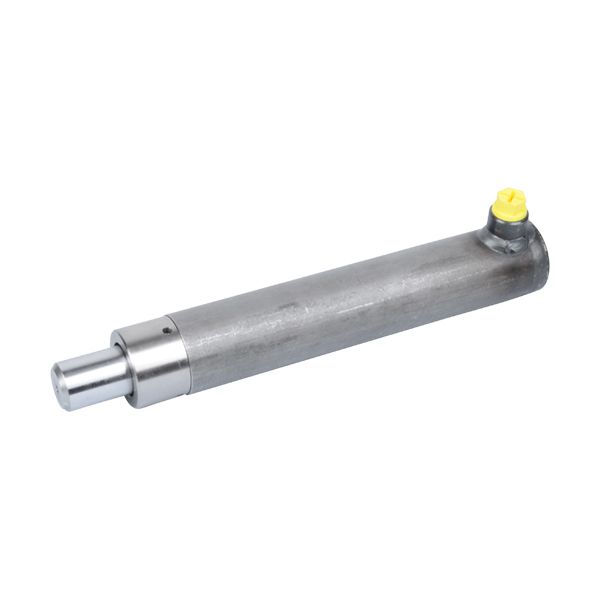

Single acting plunger cylinder 40x30x350 without attachment
€93.48
In stock
Single acting plunger cylinder 40x30x350 without attachment
- Working pressure: 180 bar
- Max pressure: 250 bar
- Temperature: -25°C; +80 °C
- Chrome rod: stem UNI C45
- Chrome plating thickness: Chrome 25 micron +/- 5
- Tube: Stem DIN 2393 - ISO H9
- Maximum speed: 0.5 m/s
Technical specifications:
- Dimension ØS (Bar): 30mm
- Dimension K (Stroke): 350mm
- Dimension AL (Bore): 40mm
- Dimension ØD (Diameter): 50mm
- Dimension Z: 476mm
- Weight : 5.33 kg
- Connection (E) : 3/8" BSP
- Dimension L1: 23mm
- Dimension C: 40mm
