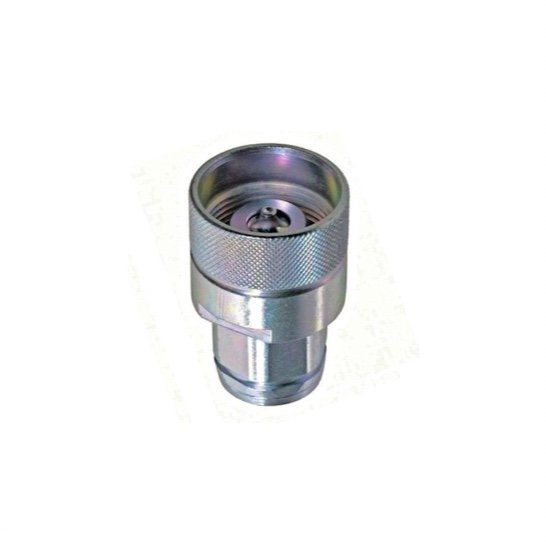

Flat face 1500 bar quick release coupling 1/4" BSP, BG-size 1 female
€128.93
In stock
Flat face 1500 bar quick release coupling 1/4" BSP, BG-size 1 female
- Work temperature: -35 ºC to +130 ºC
- Seals: NBR
- Material: steel
Technical specifications:
- Size R1: 1/4" BSP
- Operating pressure: 1500 bar
- ISO-size: 6,3
- BG-size: 1
- type of coupling: female
- Flow rate: 6 l/min
- Maximum current: 6 l/min
- Size L: 82,1 mm
- Size L1: 61,3 mm
- Size HEX 1: 24 mm
- Size ØE: 28 mm
