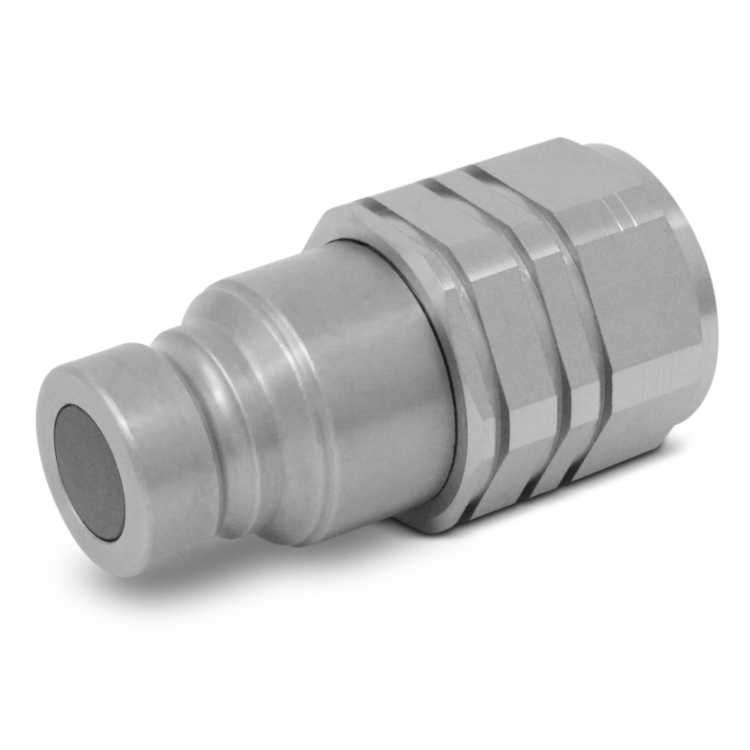

Flat face quick release coupling 1" 1/4 BSP male, BG-size 5

Flat face quick release coupling 1" 1/4 BSP male, BG-size 5

• Reinforced Flat face quick release couplings that is able to resist more pressure
• Work temperature: -20 ºC to +100 ºC
• Seals: NBR
• Material: steel

Technical specifications:

• Size R1: 1" 1/4 BSP
• Operating pressure: 250 bar
• ISO-size: 25
• BG-size: 5
• type of coupling: male
• Flow rate: 189 l/min
• Max. Flow rate: 280 l/min
• Size L: 177 mm
• Size L2: 90 mm
• Size HEX 2: 50 mm
• Size A: 36 mm
